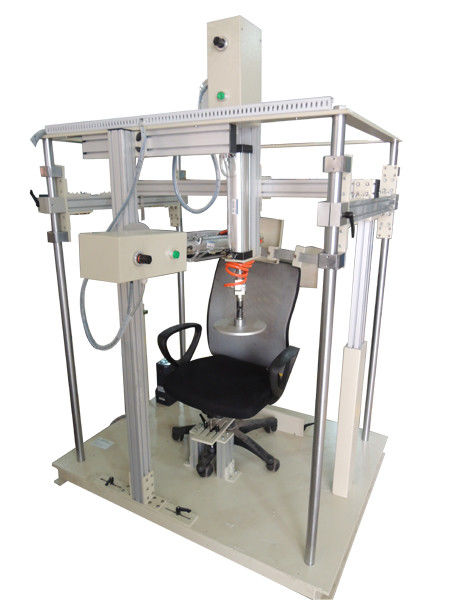

Furniture Testing Equipment , BIFMA 5.1. Backrest Durability Testing Machine

Furniture Testing Equipment , BIFMA 5.1. Backrest Durability Testing Machine

  • Furniture Testing Equipment , BIFMA 5.1. Backrest Durability Testing Machine
Furniture Testing Equipment , BIFMA 5.1. Backrest Durability Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T33
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Backrest Durability Testing Machine Loading Weight: 102kg (225lb)
Standard: DIN 4551, EN 1335, NEN 1812 And BIFMA 5.1. Brand: SKYLINE
Cycle Rate: 5 ~ 15 Rotations Per Minute. Warranty: 18 Months
High Light:

furniture testing machine

,

stability testing equipment

Furniture Physical Testing Equipment , Backrest Durability Testing Machine



Use

This machine is to evaluate the ability of the chairs to withstand fatigue stresses and wear caused by rearward force on the backrest of the chair.


Specifications

 Backrest Height  500-1200mm
 Test speed  16 and 20 times/min or specified
 Loaded weight  100lb or 225 lb
 Counter  LCD, 0-999,999
 Air pressure force  0-150lb
 Machine size  136*66*140cm
 Force stroke  0-18 inch
 Weight  549kg
 Force angle  0-90°
 Power  1 #, AC220V, 3A


Testing Standards

ANSI/BIFMA X5.1-2011 10 Tilt Mechanism Test - Cyclic

ANSI/BIFMA X5.1-2011 15 Backrest Durability Test - Cyclic - Type I

ANSI/BIFMA X5.1-2011 16 Backrest Durability Test - Cyclic - Type II and Type III



Furniture Testing Equipment , BIFMA 5.1. Backrest Durability Testing Machine 0
