Name: BIFMA 5.1 Furniture Testing Equipment Chair Seat Impact Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T02
Price: 4,500.00 USD
Availability: InStock

Home Products Furniture Testing Equipment

BIFMA 5.1 Furniture Testing Equipment Chair Seat Impact Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-T02

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Chair Seat Impact Testing Machine	Chair Height:	350-600mm
Standard:	DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BSI/BS 5459, EN 581-2	Brand:	SKYLINE
Speed:	20times/min	Warranty:	18 Months
Highlight:	furniture testing machine , stability testing equipment

BIFMA 5.1 Furniture Testing Equipment Chair Seat Impact Testing Machine

Application
This test applies to all types of chairs.
Purpose of Test: To evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.

Seat Impact Testing Machine use aluminum frame,elegant appearance.

The tester is suitable used for impact testing of all kinds furniture,such as home furniture,hotel furniture,restaurant furniture etc.Seat Impact Testing Machine simulates furniture in process of daily use and habits misuse,test the strength of desktop parts by accidental impact load.

Technical parameters

Impact head component weight	25kg
Seat height	30~65cm
Loading times	0~99999times,adjustable
Strength adjust	pressure adjust
Control	PLC,text display
Beams lifting way	Electric lift
Ar supply	Seat surface height kgf/cm^2 or above,customer provides it for himself
Power Supply	AC 220V 50Hz 5A

Standards

DIN 4551, EN 1335, NEN 1812,
BIFMA X5.1, BSI/BS 5459, EN 581-2

Reference Doc: BIFMA X5.1 2017 clause 7 Drop Test Dynamic

Test Procedures:

1. Functional Load Test

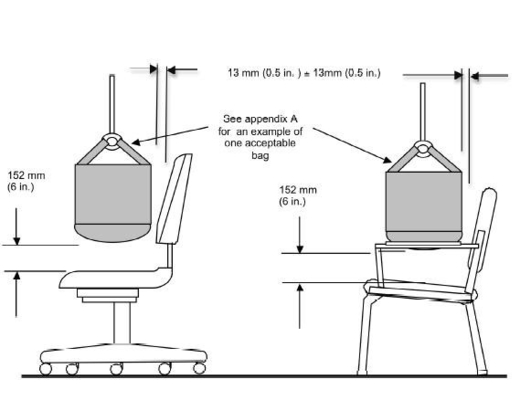

A test bag weighing 102 kg (225 lb.) shall be raised 152 mm (6 in.) above the uncompressed seat and released one time.

Remove the bag.

For chairs with seat height adjustment features, set height to its lowest position and repeat a) and b).

1. Proof Load Test

BIFMA 5.1 Furniture Testing Equipment Chair Seat Impact Testing Machine 0

BIFMA 5.1 Furniture Testing Equipment Chair Seat Impact Testing Machine 1
