EN 1728 Chair Armrest Fatigue Testing Machine Cost Effective 120mm Stroke 999999 Cycles

The SL-T12 retains the standardised fixture layout and PLC control logic of our larger testers, so results remain directly comparable between the SL-T12 and higher-capacity models. A small footprint, single-phase power supply and pneumatic drive mean the machine can be installed in an ordinary QC room without a compressor upgrade or foundation work.

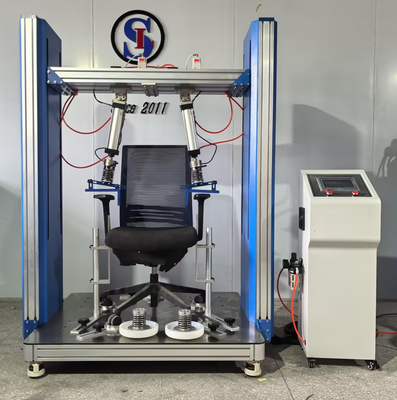

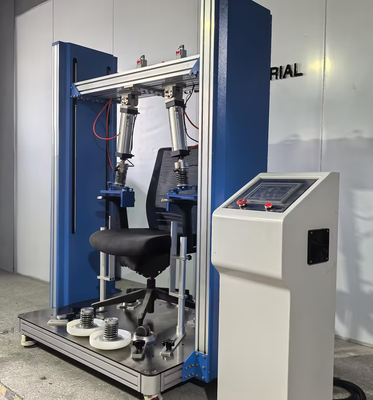

The chair is fixed on the platform with two adjustable clamps, and the armrest is positioned under the loading pad. The pneumatic cylinder drives the pad down to the preset force, holds it for the set dwell time and releases, while the PLC counts each cycle. When the preset cycle number is reached or the sample fails, the machine stops and displays the result.

• Single-station pneumatic drive with only one moving loading unit — fewer wear parts and lower maintenance cost
• Standard 60 x 60 x 3 mm welded steel frame that holds 150 kg cyclic load with no visible deflection
• PLC with 4.3 inch touch screen instead of an industrial PC — same test accuracy at a lower price
• Manual locking armrest height adjustment removes the motor and reduces both cost and failure points
• Off-the-shelf pneumatic and electrical components available from local distributors worldwide
• Small 1100 x 700 mm footprint, single-phase 220 V supply, no foundation required
• Fast 20–25 day lead time because the frame and fixtures are held as standard stock

• EN 1728:2012 clause 6.4 — armrest vertical static and fatigue load
• ANSI/BIFMA X5.1-2011 clause 11.4 — armrest cyclic load
• EN 1335-3 — office work chair armrest durability
• GB/T 10357.3 — chair armrest strength and durability

• SL-T12 test frame with manual locking armrest height adjustment
• 3 kN pneumatic loading unit with pressure regulator and filter
• PLC control cabinet with 4.3 inch touch screen

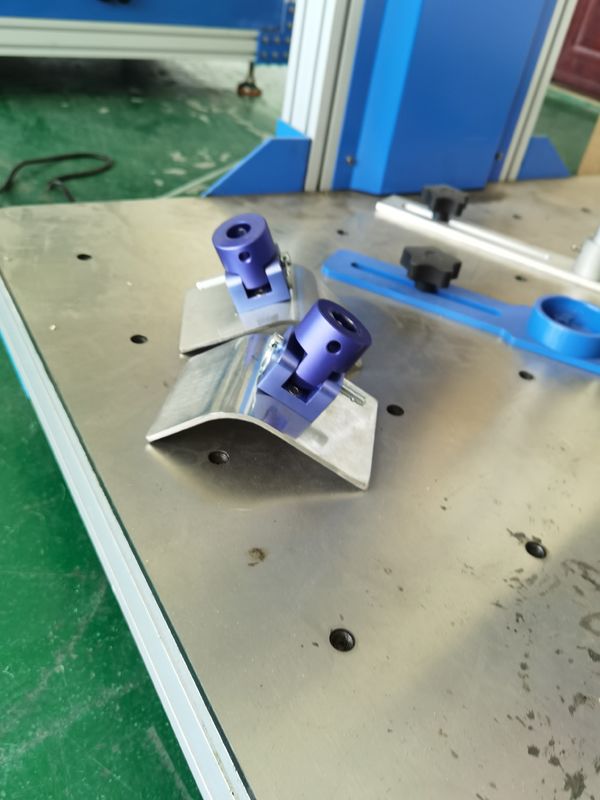

• Clamping fixture set for chairs with and without castors
• Calibration certificate, operation manual and spare seal kit

Every unit is run in for 10,000 cycles at rated load before packing and shipped with a calibration certificate. A 12-month warranty covers the frame, the cylinder and the control system, and spare parts are dispatched within 3 working days.
