Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester

Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester

  • Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester
  • Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester
  • Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester
Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T27
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Caster & Chair Base Durability Tester Stest Speed: 10±2 Times /min
Standard: ANSI/BIFMA X5.1-17 Brand: SKYLINE
Load Weight: 102kg,plus Warranty: 18 Months
Highlight:

stability testing equipment

,

chair testing machine

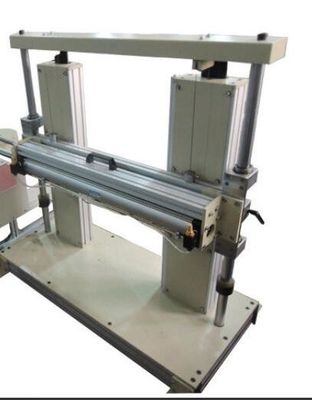

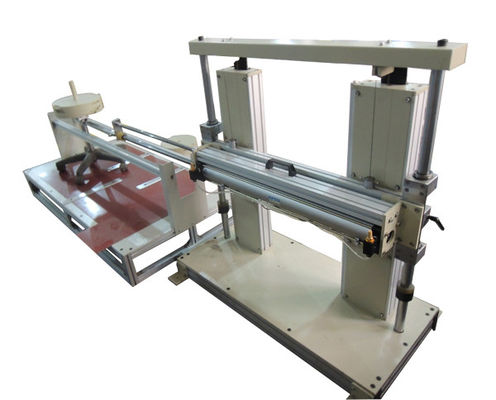

BIFMA 5.1 Furniture Testing Equipment Caster and Chair Base Durability Tester


Applicability
This test applies to pedestal base chairs with casters.
The purpose of this test is to evaluate the ability of the chair base and casters to withstand
fatigue stresses and wear caused by moving the chair back and forth
standard: ANSI/BIFMA X5.1-17


Specification

 Load weight  102kg,plus
 Move stoke  800mm
 Block  width 51mm,thickness 3.2mm,three pieces ,detachable
 Drive mode  drive by cylinder
 Test speed  10±2 times /min
 Test times  with block 2000 times ,98000 times without block
 Counter  0~999999 times ,can be set
 Air source  6kgf/cm^2



Features

12mm steel plate welded below the 100 GB channel, laying stainless steel top. Installation activities corners and locking casters.

Jumbo aluminum. Overall vertical solid and beautiful.

Touch screen + PLC + power sensor + specimen position sensor, the whole forming a closed-loop control. Loading speed can be adjusted. Easy installation


Test Standard
BIFMA X5.1 17 Clause



Easy Installation Furniture Testing Equipment Caster / Chair Base Durability Tester 0
