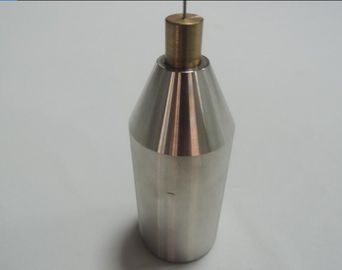

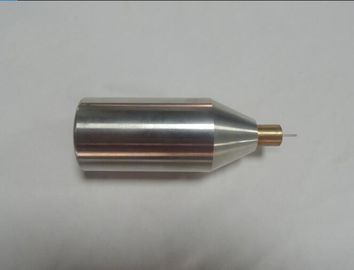

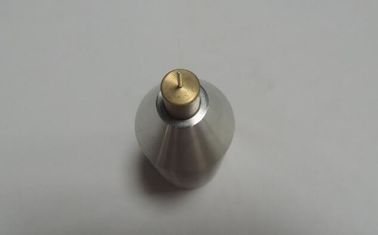

Name: Professional Toys Testing Equipment EN71 1mm Liquid Leakage Testing Needle
Brand: SKYLINE
SKU: SL-S15
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (106 reviews)

Home Products Toys Testing Equipment

Professional Toys Testing Equipment EN71 1mm Liquid Leakage Testing Needle

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-S15

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	carton box
Delivery Time:	in stock and can be shipped immediately
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Liquid Leakage Testing Needle	Standards:	ISO 8124-1 ASTM F963 EN-71
The Top Radius:	0.5MM	Load:	5N
Dimension Tolerance:	+ /-0.05mm	Warranty:	18 Months
High Light:	stability test chamber , swings testing equipment

EN 71 Toys Testing Equipment Liquid Leakage Testing Needle

Product Information

Diameter 1MM , the top radius 0.5MM, load 5N , for leakage teating.
Standard	EN71-1; GB6675 A.5.19
Dimension Tolerance	+ /-0.05mm

Testing Standards
ISO 8124-1 ASTM F963 EN-71

Procedure

Within 30 s of removing the toy from conditioning, apply a force of (5+0.50)N to the external surface of the toy through a steel needle with a diameter of 1 mm 0,1 mm and with a tip radius of 0,5 mm 0,05 mm.

How do you do a leakage test?

The leak test is performed by immersing a part, usually a sandwich composite structure, in a hot water tank. The temperature of the water induces the expansion of air in the structure, and if a crack or a delamination is present, gas bubbles escape the structure and are immediately detected by visual inspection.
