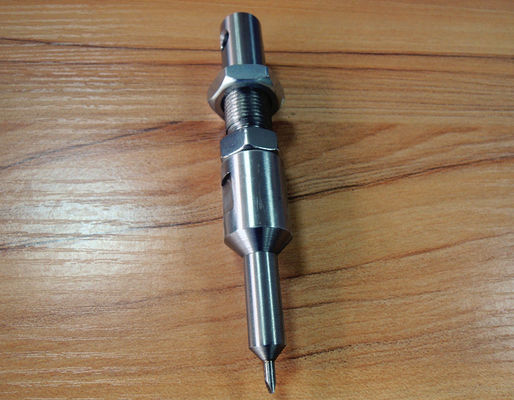

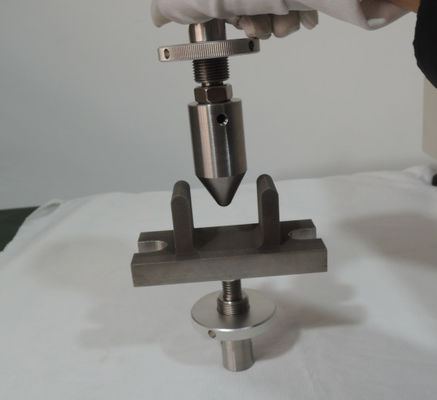

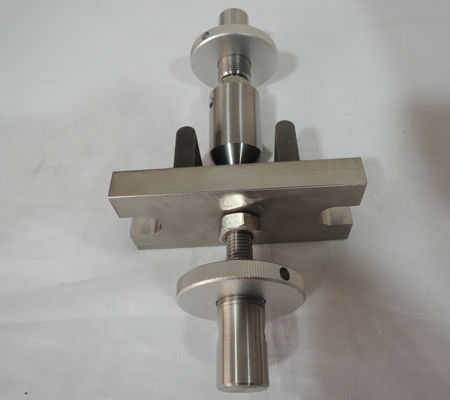

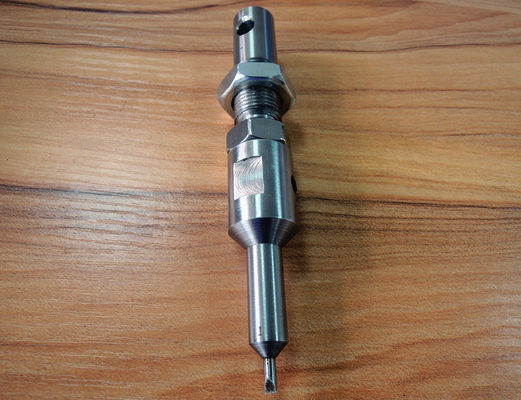

EN1400-2 EN14350-1 Toys Testing Equipment Indentor For Pacifier Testing

EN1400-2 EN14350-1 Toys Testing Equipment Indentor For Pacifier Testing

  • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
  • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
  • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
  • EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-EN1400I
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: carton box
Delivery Time: 3 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Indentor SKYLINE: Indentor
Standards: EN1400-2, EN14350-1, EN14372, EN1400-1 Material: Alu.alloy
Weight: 1kg Weight: 1kg
High Light:

swing durability tester

,

swings testing equipment

EN1400-2 EN14350-1 EN14372 EN1400-1 Indentor For Pacifier Testing



Usage

A range of fixtures for pacifier testing, including acupuncture, bending, tensile testing, etc.



Standards compliant

EN1400-2, EN14350-1, EN14372, EN1400-1



Technical parameters

The needle part is 0.20±0.01MM on the front and DIN3±0.05MM on the side.

1. Need to be installed on the tensile machine

2. The lower nipple fixing fixture can be moved left and right to facilitate testing different parts of the nipple

3. The lower nipple support plate requires a hardness of 97 IRHDs

The tip is centered vertically at 15mm to 20mm at the end of the teat, and a pressure of 200±10N is applied at a speed of 10±5mm/min for 1±0.5sec. Check whether the nipple is punctured.



 EN1400-2 EN14350-1  Toys Testing Equipment Indentor For Pacifier Testing 0
