Name: EN Toys Testing Equipment Probe C For Head / Neck Entrapment CE Approved
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S57-c
Price: 4,500.00 USD
Availability: InStock

Home Products Toys Testing Equipment

EN Toys Testing Equipment Probe C For Head / Neck Entrapment CE Approved

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S57-c

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	carton box
Delivery Time:	10 working days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	1 pcs/ month

Contact Now

Detailed Product Description

Material:	Alu Alloy	Tolerances For Dimension:	± 1 Mm
Angles.:	± 1° .	Standard:	EN71-8 6.5.1, ISO8124-4 6.5.1.3
Weight:	10KG	Application:	Test For Head And Neck Entrapment
Highlight:	stability test chamber , swings testing equipment

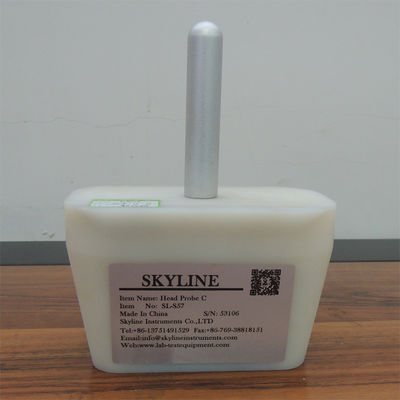

EN Toys Safety Testing Equipment Probe C (torso) for Assessment of Completely Bound Openings

Probe C is used for testing for head and neck entrapment.

Aplication

Activity toys with accessible completely bound openings with a lower edge of 600 mm or more above the
ground or any other surface which is of such a size that it will support a child, shall be assessed using probe

Procedure

First insert probe C and then probe D and examine whether they protrude more than 100 mm through the
opening. Insert the probes in the most onerous orientation without changing the orientation during insertion.
Determine whether the activity toy still complies with the relevant requirements of EN 71-8

Standard

EN71-8 6.5.1,ISO 8124-4 6.5.1.3

EN Toys Testing Equipment Probe C For Head / Neck Entrapment CE Approved 0
