Place of Origin: | CHINA |
Brand Name: | SKYLINE |
Certification: | Calibration certificate |
Model Number: | SL-T23 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negoitable |
Packaging Details: | Plywood case |
Delivery Time: | 7 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1 unit |
SKYLINE: | Hinge Durability Tester | Angle: | 0~90 Degree |
---|---|---|---|
Beams Maximum Height: | 1200mm | Brand: | SKYLINE |
Dimension(WxDxH): | 150x100x160cm | Warranty: | 18 Months |
High Light: | furniture testing machine,stability testing equipment |

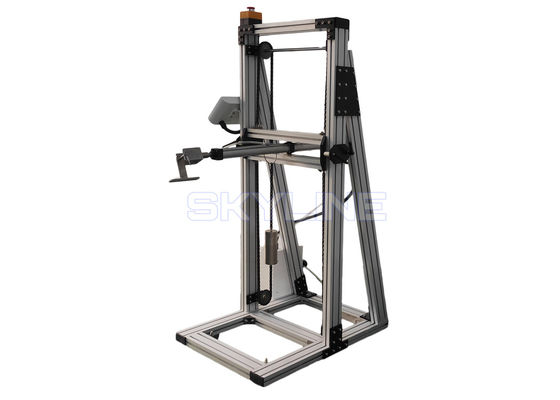

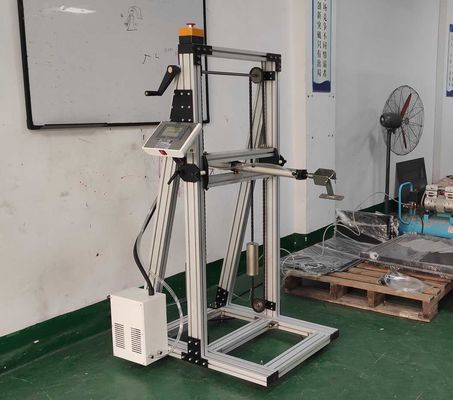

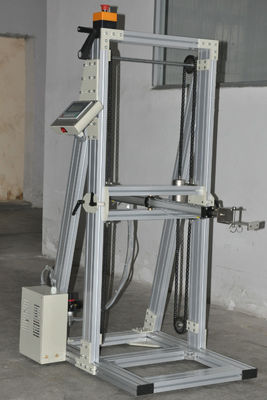

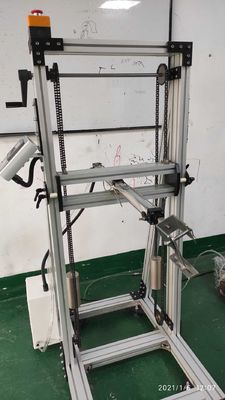

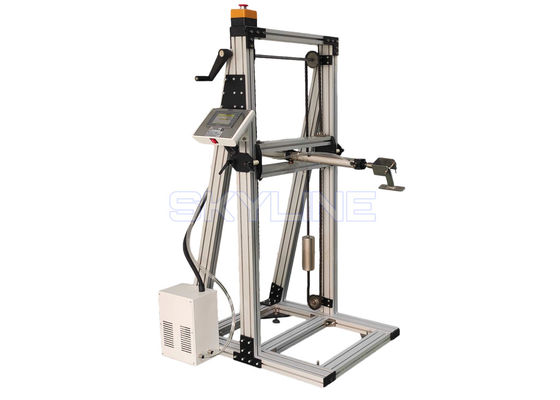

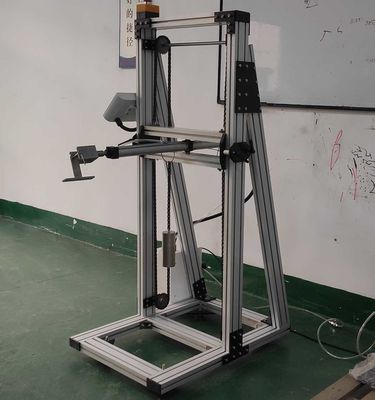

Sliding Door Hinge Durability Testing Machine , 0 ~ 90 degree Furniture Testing Machine
Application
This machine is suitable for durability testing of wooden cabinets and cupboard's door.
Connect the cupboards furniture, Simulation daily in the process of using situation of sliding door closing and opening. After specific cycles and check if the hinge damage or defective
Can be used to test the installation products, also can connect all kinds of doors and lateral strong connection and without any force which affect the test.
Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃ cupboard door hinge durability test enginery testing activities can take arrows speed control parts, and can according to need in 0.25 m/S ~ 2 m/S on the adjustment between
Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃
Opening and closing power auxiliary instrument measurement with, according to the drawer can pause when opening and closing time adjust, can be set testing machine number
Specifications
7control method | PLC(touch screen) |
Test speed | 10~18 time/min adjustable |
Cylinder trip | 800mm |
Beams maximum height | 1200mm |
Dimension(WxDxH) | 150x100x160cm |
Weight(about) | ≈85Kg |
Air source | 7kgf/cm^2 |
Power | 1∮ AC 220V 50Hz 3A |
Angle | 0~90 degree |
Timer counter | 0-9,99999 |
Hinge Durability Testing Machine.pdf
Standards
QB/T 2189
Contact Person: Kate Guo
Tel: 13310805373
