ISO 8124-4 Toys Testing Equipment Template D For Assessment Head / Neck Entrapment

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-S61

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	carton box
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Template D	Standards:	ISO8124-4
Material:	Alu.alloy	Size Tolerances:	+/-1mm
Angle Tolerances:	+/- 1degree	Warranty:	18 Months
Highlight:	swing durability tester , swings testing equipment

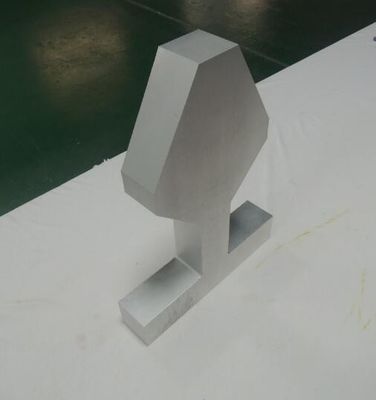

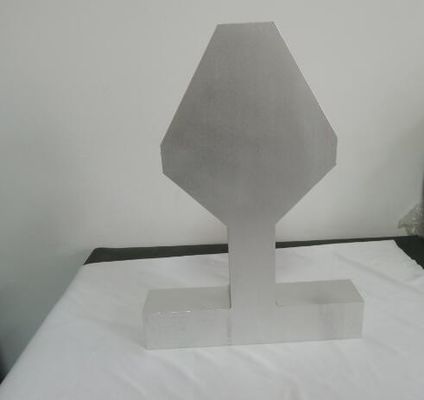

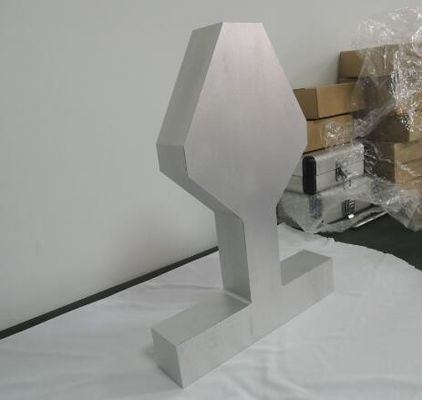

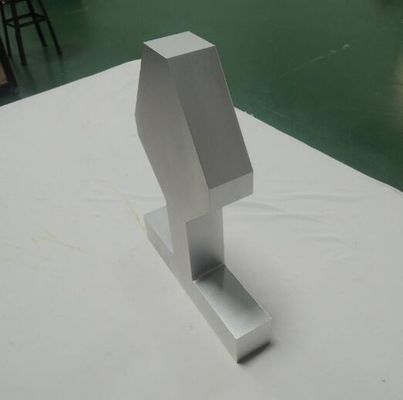

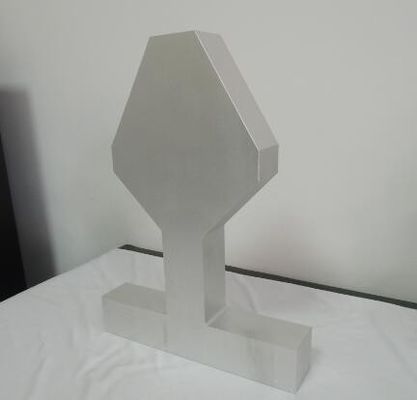

ISO8124-4 Toys Testing Equipment Test template D for Assessment of Head and Neck Entrapment

This template is used for assessing partially bound and V-shaped openings for head and neck entrapment

It is used to test the evaluation of template to head and neck sick into parts of closed V type open.

Material	Alu.alloy
Size tolerances	+/-1mm
Angle tolerances	+/- 1degree

Procedure

Position the “B” portion of the test template between and perpendicular to the boundaries of the opening,

Observe whether the template fits within the boundaries of the opening or whether it cannot be inserted to
its full thickness
Determine whether the opening is accessible or not accessible
b) If the test template can be inserted to a depth greater than the thickness of the template (45 mm) when
tested in accordance with a), apply the “A” portion of the test template, so that its centre line is in line with
the centre line of the opening. Ensure that the plane of the test template is parallel and applied in line with
the opening
