IS9873/ISO8124-4 Toys Testing Equipment Durability Tester for Suspension Connector of Swings

Name: IS9873/ISO8124-4 Toys Testing Equipment Durability Tester for Suspension Connector of Swings
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S85
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-S85
MOQ:	1 UNIT
Price:	Negoitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SKYLINE:

Suspension Connector Durability Tester

Standard:

ISO8124-4 6.8 EN71-8

Load:

6.75kg,13.5kg,18.5kg,30kg

Test Speed:

1~60r/min

Cycles:

180000

Material:

Steel

Packaging Details:

plywood case

Supply Ability:

1 unit / month

Highlight:

swing durability tester

swings testing equipment

Product Description

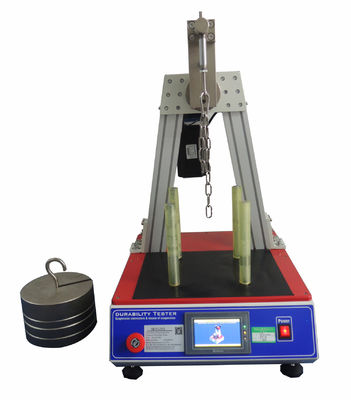

ISO8124-4 Durability Tester for Suspension Connector of Swings

Product information

Suspension connectors and means of suspension are cycled 180 000 times under load to simulate use.
For the safety of children when they are playing on swings, a durability test machine is recommended to check if the suspension connector is robust enough after many times of use.

Procedure

Attach each type of swing element to its support member in accordance with the installation instructions, and mount in a suitable test fixture.
Flexible components of the swing element may be replaced by rigid components of at least the same size and mass, as long as the alternate components do not affect the moving parts of the swing element.
Secure the appropriate test mass to each occupant position to be tested.
Oscillate this suspended unit through an arc with an included angle as specified for a total of
180 000 cycles (forward and backward).
Determine whether any loosening or structural failure of the suspension connector occurs.

Technical Parameter

Load	6.75kg,13.5kg,18.5kg,30kg
Swing angle	±5°~±45°(10°~90°)
Test speed	1~60r/min
Standard	ISO8124-4.6.8

Suspension Connector Durability Tester.pdf

Company Profile.pdf

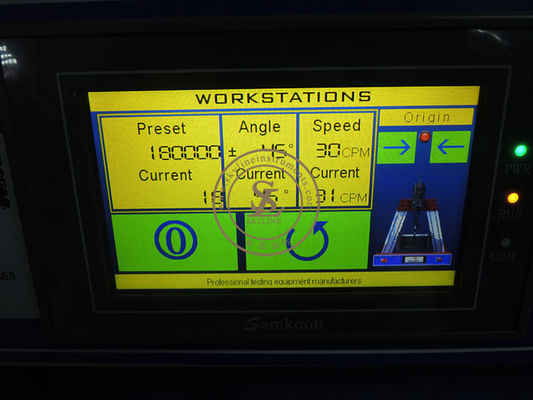

IS9873/ISO8124-4 Toys Testing Equipment Durability Tester for Suspension Connector of Swings 0 Contoller PLC
