BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk

BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk

  • BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk
  • BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk
BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T32-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Rear-Stability-Disk Weight: 10 Kg ± 0.05 Kg
Diameter: 350mm Thickness: 48mm
Standard: ANSI/BIFMA X5.1-2011 12.3 Rear Stability Application: Seating With Tilting Backrest
Highlight:

furniture testing machine

,

chair testing machine

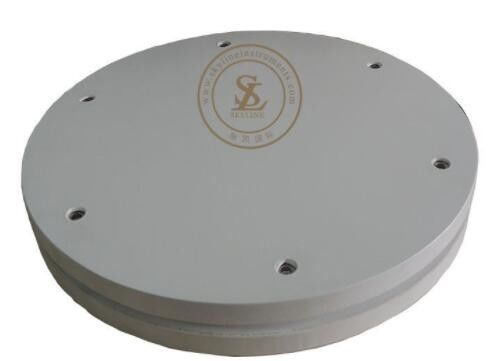

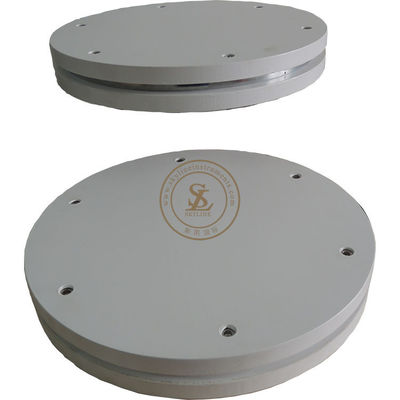

BIFMA X5.1 Furniture Testing Equipment Medium Density Fiberboard Rear Stability Disk


Surface layer was made medium density fiberboard
Middle layer, sandwich construction.
Weight: 10 kg ± 0.05 kg
Diameter:350mm
Thickness 48mm


Testing Standards

  • ANSI/BIFMA X5.1-2011 12.3 Rear Stability
  • EN 1022:2005 4.4 Loading discs
  • EN 1022:2005 7.3 Tilting chairs


Application
Seating with tilting backrest



Rear Stability Disk.pdf
