Place of Origin: | China |
Brand Name: | SKYLINE |
Certification: | CE |
Model Number: | SL-S85 |
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | Negoitable |
Packaging Details: | plywood case |
Delivery Time: | 30 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1 unit / month |
SKYLINE: | Suspension Connector Durability Tester | Standard: | ISO8124-4 6.8 EN71-8 |
---|---|---|---|
Load: | 6.75kg,13.5kg,18.5kg,30kg | Test Speed: | 1~60r/min |
Cycles: | 180000 | Material: | Steel |
High Light: | stability test chamber,swing durability tester |

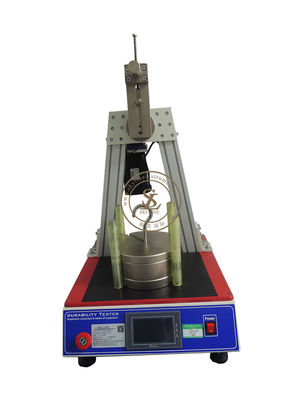

ISO8124-4 Swing Suspension Connector Durability Tester
Application
Suitable for evaluating the durability of the suspension mechanism used for swings in children's amusement facilities.
Principle: After simulating the situation in normal use, after loading the suspension mechanism with a certain weight, after a certain number of cycles, check whether its performance meets the safety requirements
Conform to the standard: ISO 8124.
Technical parameters
Load | 6.75kg, 13.5kg, 18.5kg, 30kg cumulative |
Load loading method | hanging |
Fixed rod eccentricity | 100mm ~ 220mm |
Swing angle | ± 5 ° ~ ± 45 ° (10 ° ~ 90 °) can be set |
Number of suspension mechanisms | one |
Test speed | 1 ~ 60r / min can be set |
Count | 0 ~ 999 999 can be set |
Control mode | PLC + touch screen |
Volume (WxDxH) | 40x52x78cm |
Weight (approx) | ≈75Kg |
Power supply | 1∮ AC 220V 50Hz 3A |
Procedure
Attach each type of swing element to its support member in accordance with the installation instructions, and
mount in a suitable test fixture.
Flexible components of the swing element may be replaced by rigid components of at least the same size and
mass, as long as the alternate components do not affect the moving parts of the swing element.
Secure the appropriate test mass to each occupant position to be tested.
Oscillate this suspended unit through an arc with an included angle as specified for a total of
180 000 cycles (forward and backward).
Determine whether any loosening or structural failure of the suspension connector occurs.
Suspension Connector Durability Tester.pdf

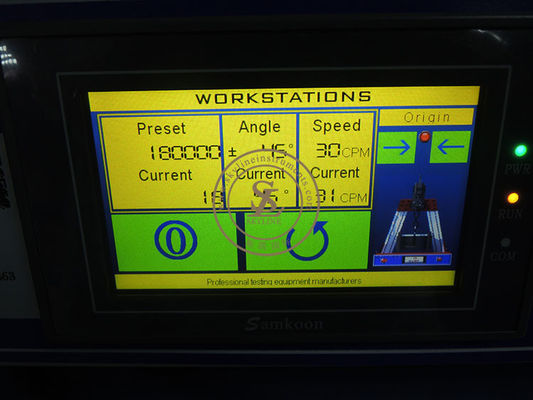

Contoller PLC
Contact Person: Kate Guo
Tel: 13310805373
