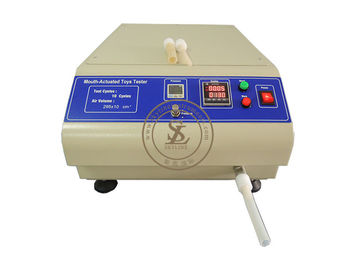

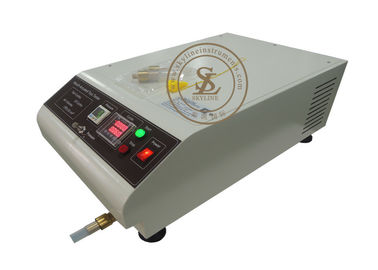

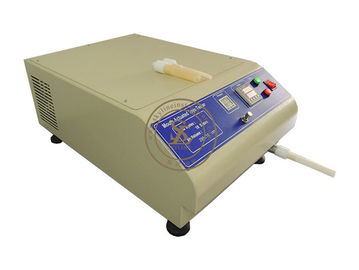

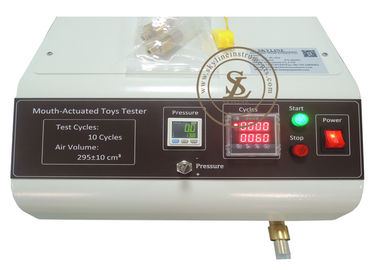

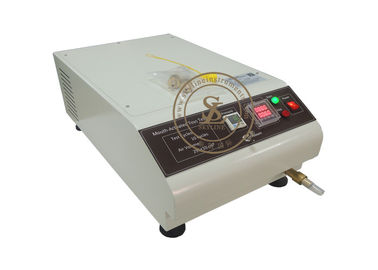

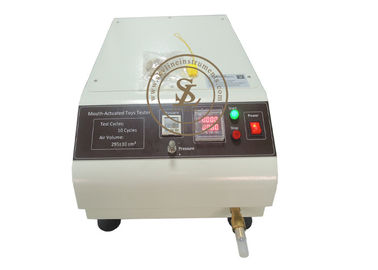

Name: IS9873/ ISO 8124 Toys Safety Testing Equipment Mouth Actuated Toys Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S23
Price: 4,500.00 USD
Availability: InStock

Home Products Toys Testing Equipment

IS9873/ ISO 8124 Toys Safety Testing Equipment Mouth Actuated Toys Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S23

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Mouth Actuated Toys Durability Tester	Standards:	IS 9873,ISO 8124-1 16 CFR 1500 ASTM F963 4.8 EN-71
Accessories:	Tube Gripper 2pcs	Test Speed:	120+/-10/min
Satisfied Conditions:	295 ± 10cm3	Warranty:	18 Months
Highlight:	stability test chamber , swings testing equipment

IS9873-1 Mouth Actuated Toys Durability Tester Toys Testing Equipment

Application

This testing is suitable for testing the safety capability of Mouth Toys.
Satisfied conditions:create 295 ± 10cm3 gas volume within 5s at least,And can be alternately blowing and suction toys 10 times. Equipped with imported high-precision pressure gauge. Gas flow can control by the valve.
Mouth Actuated Tester Testing Safety requirements
1. Mouth toys and toy in which to remove the mouthpiece and cannot be a Widget
2. The un-removed mouthpiece in the mouth moving toys, run soaking test, the torque test and tensile test shall not create small parts
3.The mouth toys if they contain loose parts, when running the durability test shall not create small parts ( alternately blow and suction toys using 295 ± 10cm3 gas volume within 5 seconds and repeat 10 times)
4. Removable or cannot remove the mouthpiece of the balloons must comply with the requirements of 1 and 2

Technical parameters

Test Speed	120+/-10/min
Testing times	10 times
Gas-pressure meter	Digital,Units, Kpa, The positive and negative pressure display
Dimensions	46.5x60x25cm
Weight	30kg
Standards	ISO 8124-1 16 CFR 1500 ASTM F963 4.8 EN-71
Accessories	Tube gripper 2pcs
