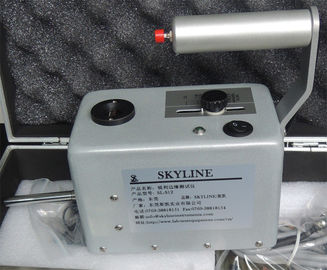

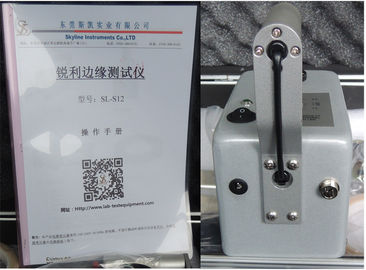

Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester

Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester

Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester
Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester
Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Alu.box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Sharp Edge Tester Standards: 16CFR 1500.48, ASTM F 963 4.8, EN-71 2017 8.14
Weight: 3.5 Kg Dimensions: 290x180x115 Mm
Accessories: Charging Unit, Foot Switch, One Roll Of PTFE Tape, Base Plate Warranty: 18 Months
Highlight:

stability test chamber

,

swing durability tester

Children Toys Testing Equipment EN71-1 Toy Safety Sharp Edge Tester


Product Information
To determine whether accessible edges on toys are likely to cause injury. A self-adhesive PTFE tape is attached to a mandrel, which is then rotated for a single 360-degree revolution along the accessible edge being tested. If the tape is cut in half or longer in length (approx. 13 mm), the edge is identified as a hazardous sharp edge. Toys intended for use by children under 8 years old are subject to this requirement before or after use & abuse testing.



Technical parameters

 Size
 (L*W*H)29*19*10cm
 Weight
 3.5Kg
 Speed
 1.00±0.08 In/s
 Fixed force
 1.35LB
 Material
 stainless steel
 Accessories
 Tiefo Long Tape PTFE Tape (optional)
 Standard
 ASTM F963 4.7, EN 71-1 8.11, 16 CFR 1500.49, ISO 8124-1 5.8



Sharp Edge Tester and Sharp Point Tester.pdf

Sharp Edge Tester.pdf
