ASTM WK4510 PS79-96 14mm / 26mm Press Ring Button Snap Pull Tester For Button Snap Rivets

Toys Button Snap Tester Snap Button Tester

Product introduction

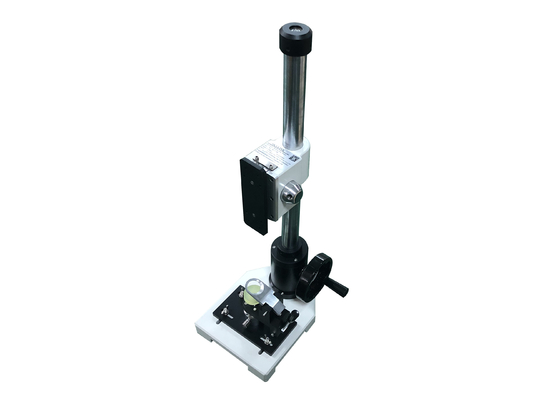

To determine the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. Used for measuring the responsibility of garment manufacturer to ensure
button and firmware can be fixed on the ready-made garments properly,
Avoiding button drop from garment to brought danger to baby swallow.
Used for testing the vertical orientation tension of button and added touch.


Technical parameters

complete standard package including the accessories
1. 30kg Impact Force Gauge FB-30K 1Pc

2. Upper Universal Grip for Femal part of snap
3 Upper Stud Clamp for male part of snap
4. Lower Fabric Clamp, Lever Arm locking 1Pc
5. Three Pronged Clamp 1Pc
6. long mouth Clamp 1Pc

7.Upper Grasp Button Grip

8.Mechanical Stand for Imada Push Pull Gauge

9.Goggles

10.Operation Manual


Features

1, The meter made by IMADATM in Japan, with high accuracy.

2, Grasp clamp made by stainless steel, durable and easy to operate.

3, Many grasps clamp attached, can perform many snap strength tests.

4,The structure special designed, and the test result with high accuracy.

Button Pull Tester SKYLINE.pdf

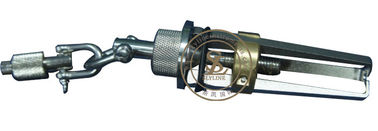

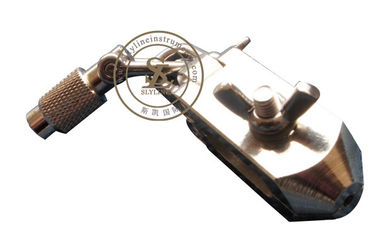

Lower Fabric Clamp/ Level Arm Locking                       Lower Grasp Button Accessory Kit

15LBs Calibration Weight
