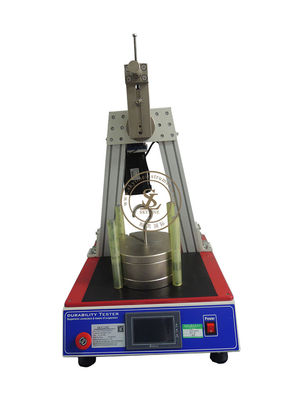

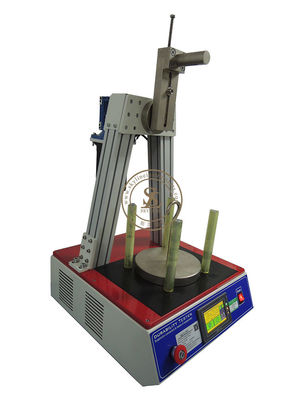

EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine

EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine

EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine
EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine
EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S85
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit / month
Contact Now
Detailed Product Description
SKYLINE: Suspension Connector Durability Tester Standard: ISO8124-4 6.8,EN71-8,EN1176-2
Load: 6.75kg,13.5kg,18.5kg,30kg Test Speed: 1~60r/min
Cycles: 180000 Material: Steel
Highlight:

stability test chamber

,

swing durability tester

ISO8124-4 Swing Suspension Connector Durability Tester for Outdoor Activity Toys



Product Description

Suspension connectors and means of suspension are cycled 180 000 times under load to simulate use.
For the safety of children when they are playing on swings, a durability test machine is recommended to check if the suspension connector is robust enough after many times of use.



 Load  6.75kg,13.5kg,18.5kg,30kg
 Swing angle  ±5°~±45°(10°~90°)
 Test speed  1~60r/min



Test Standard
ISO8124-4 6.8



Procedure

Attach each type of swing element to its support member in accordance with the installation instructions, and
mount in a suitable test fixture.
Flexible components of the swing element may be replaced by rigid components of at least the same size and
mass, as long as the alternate components do not affect the moving parts of the swing element.
Secure the appropriate test mass to each occupant position to be tested.
Oscillate this suspended unit through an arc with an included angle as specified for a total of
180 000 cycles (forward and backward).
Determine whether any loosening or structural failure of the suspension connector occurs.



EN1176-2 / ISO 8124-4 Swing Suspension Connector Durability Testing Machine 0
