Grease Anti-water Spray Test Machine

Name: Grease Anti-water Spray Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA43
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-OA43
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

Grease anti-water spray tester

Lab testing spray machine

Waterproof grease testing equipment

Product Description

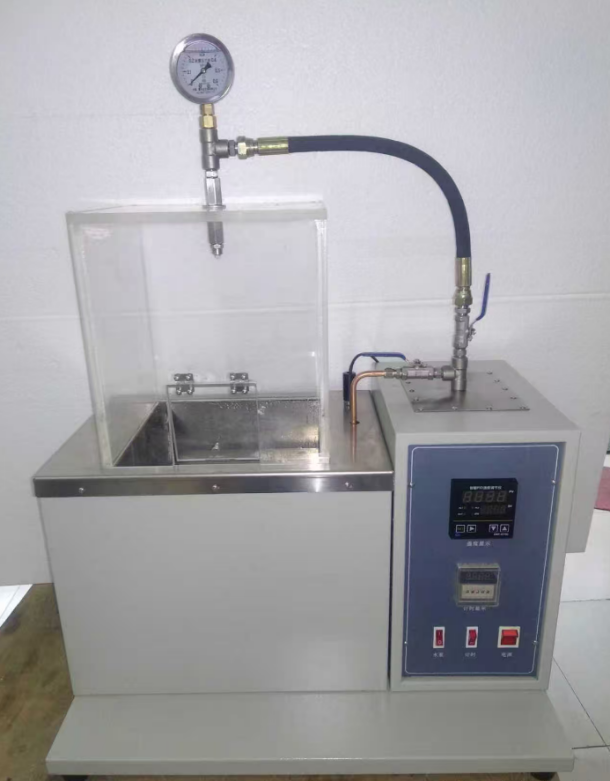

Grease Anti-water Spray Test Machine

This precision testing instrument applies grease to a stainless steel plate and sprays it with water at specified test temperature and pressure. After 5 minutes, the percentage of grease lost in the spray is measured to evaluate water spray resistance. The system features a magnetic pump for circulating cooling medium, insulation-sleeved circulation pipes, an acrylic spray chamber for easy observation, and a precision pressure gauge for accurate spray pressure monitoring.

Technical Specifications

Parameter	Specification
Applicable Standards	SH/T0643-97, ASTMD4049
Temperature Control	38±0.5℃
Temperature Control Method	Digital PID temperature controller
Heating Method	Electric heating tube
Refrigeration Mode	Compressor refrigeration, external circulation of cold bath
Timing Mode	Digital display timer
Working Water Pressure	40psi ±1psi
Water Pressure Control	Bypass valve adjustment
Spray Method	Precision nozzle
Nozzle Specifications	Stainless steel nozzle with diameter of Φ3.18mm

Applications

The SL-OA43 Anti-water Spray Test Instrument evaluates the ability of grease to adhere to metal surfaces when subjected to direct water spray in accordance with ASTM D4049.

Water spray resistance testing - Evaluating grease adhesion to metal surfaces under direct water spray
Grease adhesion evaluation - Assessing how well grease remains on surfaces when exposed to water
Marine and outdoor equipment lubrication - Testing greases for applications exposed to water spray
Quality control in grease manufacturing - Verifying water spray resistance specifications
R & D and formulation development - Developing greases with improved water adhesion properties
Automotive and industrial lubricant testing - Evaluating grease performance in wet environments

Frequently Asked Questions

What is this equipment used for?

This instrument evaluates the ability of grease to adhere to metal surfaces when subjected to direct water spray. It measures the percentage of grease lost during spraying to assess water spray resistance.

What standards does it comply with?

The instrument complies with SH/T 0643-97 and ASTM D4049 standards.

How does the test work?

Grease is applied to a stainless steel plate and sprayed with water at specified test temperature and pressure. After 5 minutes, the percentage of grease lost in the spray is measured.

What is the temperature control?

Temperature is controlled at 38±0.5°C using a digital PID temperature controller.

What is the working water pressure?

Working water pressure is 40psi ±1psi, controlled via bypass valve adjustment.

What type of nozzle is used?

The instrument uses a precision nozzle with stainless steel construction and diameter of Φ3.18mm.

How is cooling achieved?

Refrigeration is provided by a compressor with external circulation of cold bath. The magnetic pump circulates cooling medium through insulation-sleeved circulation pipes.

What is the spray chamber made of?

An acrylic spray chamber is installed for easy observation, complemented by a precision pressure gauge for spray pressure display.
