2 Stations Luggage Multi-road Condition Test Machine

Brand Name:	SKYLINE
Model Number:	SL-TL01
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

2 stations luggage test machine

multi-road condition testing equipment

luggage lab testing machine with warranty

Product Description

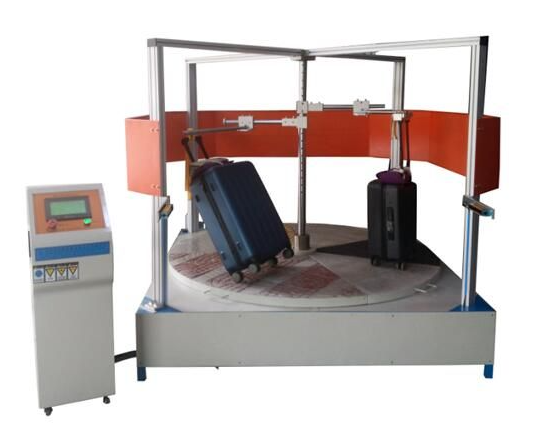

2 Stations Luggage Multi-road Condition Test Machine

This advanced luggage testing equipment simulates real-world road conditions to evaluate the durability and performance of luggage wheels, axles, frames, and overall construction quality.

Product Overview

The Luggage Multi-road Condition Test Machine features dual test stations with cement test rolls measuring 216±2mm in diameter. Each roll surface includes raised steel bars with 30mm convex width and 3mm surface thickness. The testing system accommodates samples with maximum parallel wheel spacing up to approximately 600mm.

Key Applications

Designed for R&D teams and quality control personnel to assess luggage performance during walking simulations. The machine conducts continuous walking tests to evaluate wheel, axle, wheel frame, tie rod, and box quality while calculating wheel wear rates.

Technical Specifications

Control System: PLC controlled with human-machine interface operation

Test Distance: Programmable test kilometers with customizable settings

Intermittent Timing: Configurable rest periods with power failure memory function

Operating Speed: 0-4 km/h adjustable

Fixed Gantry: Supports two-wheel and four-wheel testing modes

Power System: Precision variable frequency motor

Machine Dimensions: 1.88M × 1.8M × 1.64M (Width × Depth × Height)

Power Supply: 220V 50HZ

Road Surface Simulation

Comprehensive Pavement Testing: 30% fine cement pavement, 30% coarse cement pavement, 20% masonry pavement, 9% marble pavement, 9% blind road, 1% speed bump, 1% sewer simulation

Testing Procedure

Position sample on test machine with wheels placed on test rolls
Extend pull rod fully and secure on hook
For samples without pull rods, secure using handles or side handles at 45°±2° angle to horizontal plane
Lock lever handle and fix stopper position
For four-wheel samples, adjust distance between test rolls to accommodate all wheels
Set operating speed to 4km/h with 10-minute intervals every 2km of operation
Standard test itineraries: 4km, 8km, 12km, 16km, 20km or custom distances

Critical Components

Component	Specification
Cement Rollers	φ (216±2) mm dual rollers with adjustable spacing and opposite rotation
Thrusting Steel Bars	600 × 30 × 3mm (Width × Depth × Height)
Fixed Gantry Angle	45°±2° from horizontal plane
Test Speed & Intervals	4km/h operation with 10-minute rest every 2km
Timer Display	LCD digital display
Control System	Adjustable speed, programmable total stroke, configurable rest periods with memory function
Limiting Device	Adjustable positioning to maintain consistent sample placement throughout testing
