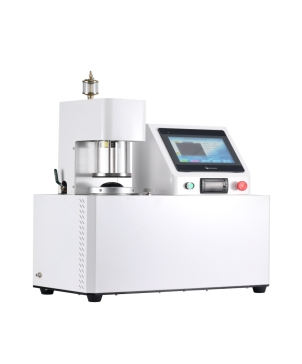

ASTM D3786 Leather&Farbric Brusting Strength Test Machine ISO2759 & ISO13938-2

ASTM D3786 Leather&Farbric Brusting Strength Test Machine ISO2759 & ISO13938-2

ASTM D3786 Leather&Farbric Brusting Strength Test Machine ISO2759 & ISO13938-2

Brand Name: SKYLINE
Model Number: SL-T24F
MOQ: 1
Price: Negociate
Payment Terms: T/T
Supply Ability: 1 Set/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Packaging Details:
Poly wooden case
Supply Ability:
1 Set/Month
Highlight:

ASTM D3786 leather bursting strength tester

,

fabric bursting test machine ISO2759

,

ISO13938-2 lab testing equipment

Product Description
ASTM D3786 Leather & Fabric Bursting Strength Test Machine ISO2759 & ISO13938-2
Product Overview
This specialized testing machine determines the expansion force and expansion degree of various textiles, non-woven fabrics, leather, and other materials when subjected to simultaneous force in both warp and weft directions using the elastic diaphragm method.
Compliance Standards
  • ISO 2759
  • ASTM D3786
  • ISO 13938-2
Key Features
  • Fully automatic one-click operation for efficient testing
  • Automatic calculation of bursting pressure, bursting strength, diaphragm pressure, average bursting strength, bursting height, and bursting volume
  • 10-inch industrial-grade touch screen with integrated data printing functionality
  • High-precision imported pressure sensors and laser distance sensors for accurate measurements
  • Precision hydraulic pump system for consistent performance
  • High-power servo motors for reliable operation
  • Pressure regulating valve and pressure gauge with adjustable pressure settings
Technical Specifications
Measurement Method Hydraulic method
Sensing Method Pressure converter
Height Measurement Laser ranging
Test Capabilities Automatic calculation of bursting pressure, bursting strength, diaphragm pressure, average bursting strength, bursting height, and bursting volume. Printing function for 10 data sets and average values
Display & Operation 10-inch industrial LCD touch screen, fully automatic operation
Pressure Range 0 to 2 MPa (customizable range)
Height Range 0 to 70 mm
Measurement Accuracy Indication error: better than ±1% FS
Indication variability: better than ±1%
Oil Pressure Speed 170 ± 10 ml/min (high-pressure type)
Clamping Ring Material Stainless steel with transparent protective cover
Clamping Force >0.2 MPa (adjustable)
Test Areas 7.3 cm² (φ30.5 mm), 50 cm² (φ79.8 mm)
Upper Clamping Ring ID φ (79.8 ± 0.05) mm
Lower Clamping Ring ID φ (79.8 ± 0.05) mm
Hydraulic Fluid Silicone oil
Dimensions 700 × 350 × 690 mm
Weight Approximately 70 kg
Power Supply 220 V, 50 Hz
