Textile Brusting Strength Test Machine ISO2759 Farbric Determination of Bursting Strength

Name: Textile Brusting Strength Test Machine ISO2759 Farbric Determination of Bursting Strength
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T24F
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T24F
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

Textile bursting strength tester ISO2759

Fabric bursting strength test machine

Lab testing equipment for textiles

Product Description

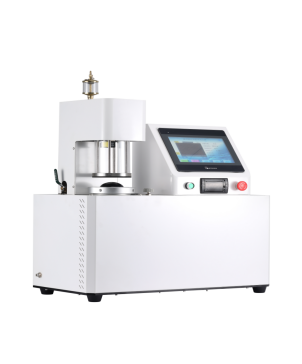

Textile Bursting Strength Test Machine ISO2759 Fabric Determination of Bursting Strength

Machine Overview

This testing machine is designed for determining the expansion force and expansion degree of various textiles, non-woven fabrics, leather, and other materials when subjected to simultaneous force in both warp and weft directions using the elastic diaphragm method.

Compliance Standards

Test Standards: ISO2759, ASTM D3786, ISO13938-2

Key Features

Fully automatic one-click operation
Automatic calculation of bursting pressure, bursting strength, diaphragm pressure, average bursting strength, bursting height, and bursting volume
10-inch industrial-grade touch screen with data printing function
High-precision imported pressure sensors and imported laser distance sensors
Precision hydraulic pump configuration
High-power servo motors
Pressure regulating valve and pressure gauge with adjustable pressure

Technical Specifications

Measurement Method	Hydraulic method
Sensing Method	Pressure converter
Height Measurement	Laser ranging
Test Items	Automatic calculation of bursting pressure, bursting strength, diaphragm pressure, average bursting strength, bursting height, and bursting volume. Printing function for 10 sets of data and average values
Display Mode	10-inch industrial LCD screen with fully automatic operation
Pressure Measurement Range	0 to 2Mpa (customizable range)
Height Measurement Range	0 to 70mm
Measurement Accuracy	Indication error: better than ±1%FS Indication variability: better than ±1%
Oil Pressure Speed	170±10ml/min for high-pressure type
Clamping Ring Material	Stainless steel with transparent protective cover
Clamping Force	>0.2Mpa (adjustable)
Test Area	7.3cm² (φ30.5mm), 50cm² (φ79.8mm)
Upper Clamping Ring Hole ID	φ (79.8±0.05) mm
Lower Clamping Ring Hole ID	φ (79.8±0.05) mm
Hydraulic Oil	Silicone oil
Dimensions	700×350×690mm
Weight	Approximately 70KG
Power Supply	220V 50Hz
