Paper Brusting Strength Test Machine ISO2758 Paper Determination of Bursting Strength

Brand Name:	SKYLINE
Model Number:	SL-T24P
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

ISO2758 paper bursting strength tester

lab paper burst strength machine

paper testing equipment with ISO2758

Product Description

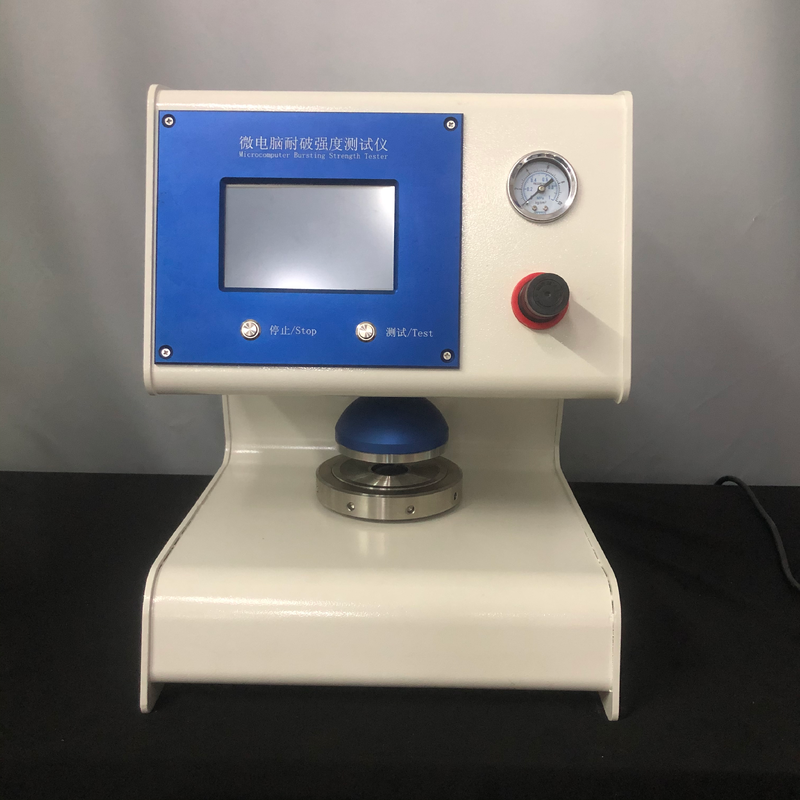

Paper Bursting Strength Test Machine

ISO2758 Paper Determination of Bursting Strength

Product Overview

The paper bursting strength tester is engineered according to the internationally recognized Mullen method, serving as a specialized instrument for evaluating the bursting strength performance of various paper types. This equipment meets the performance parameters and technical specifications outlined in standards including ISO2758 "Paper - Determination of Bursting Strength" and GB454 "Method for Determination of Bursting Strength of Paper". Suitable for bursting strength tests across diverse paper varieties, it can also accommodate non-paper materials such as silk and cotton cloth.

This advanced testing instrument features comprehensive capabilities including testing, conversion, adjustment, display, memory, and printing of all standard parameters. With robust data processing functionality, it delivers direct statistical results and automatic reset capabilities, ensuring operational ease, adjustment convenience, and stable performance.

Technical Specifications

Parameter	Specification
Power Supply	AC220V±10% 2A 50Hz
Indication Error	±0.5%
Indication Variability	≤0.5%
Resolution	0.1 kPa
Measurement Range	(50-1400) kPa
Oil Delivery Volume	(95±5) mL/min
Clamping Force	≤1200kPa (adjustable)
Air Compressor	Pressure (0.6-0.7) MPa; Displacement: (0.02-0.3) m³/min (non-standard configuration)
Adhesive Film Pressure Range	(30±5) kPa when protrusion height is (9±0.2) mm
System Sealing Performance	Pressure drop < 10%FS within 1 minute
Human-Machine Interface	5-inch color touch screen, Chinese and English menus
Print Output	Modular integrated thermal printer
Communication Output	WAN port (optional)/USB (optional)
Working Environment	Indoor temperature (20 ± 10) °C; Relative humidity < 85%
Overall Dimensions	(400350500) mm (lengthwidthheight)
Weight	Approximately 40 kg

Key Features

Sample placement prompt function to minimize operator errors
Over-range alarm function for precision sensor protection
High-speed ARM processor for automation, rapid data collection, and intelligent judgment
32-bit high-precision AD converter with 1/10,000,000 resolution
High-performance pressure sensing for accurate force value data collection
Real-time pressure display with pressure and deformation curve graphs
Modular integrated thermal printer with fast printing and easy paper changing
Multiple unit options (kPa, kgf/cm², lbf/in²) with free switching capability
Bilingual operation menu (Chinese-English) with instant language switching
