Smoke Density Test Machine for Wire and Cable and Fiber Optic Cable 3 Metre Cube

Name: Smoke Density Test Machine for Wire and Cable and Fiber Optic Cable 3 Metre Cube
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-819
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-819
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set

Highlight:

smoke density test machine for cables

3 metre cube smoke density tester

wire and cable smoke density analyzer

Product Description

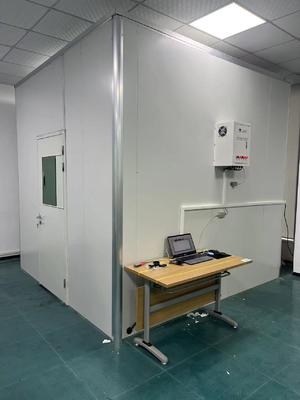

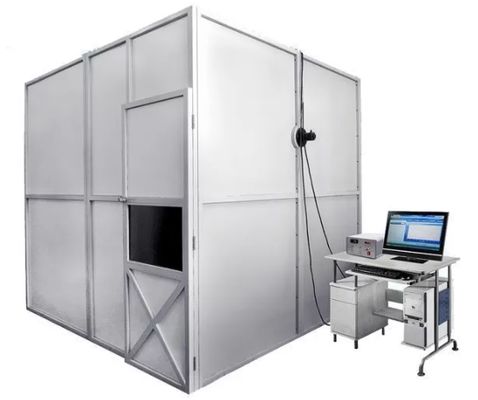

3 Metre Cube Smoke Density Apparatus for Wire and Cable Testing

The 3 Metre Cube Smoke Density Apparatus measures smoke emission when cables or optical fibers are placed horizontally under defined fire conditions. This comprehensive system includes a cubic enclosure and photometric measurement system, using a specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%).

Compliance Standards:

IEC 61034-1 & 2: Measurement of Smoke density of cables burning under defined conditions
BS 6853: Code of practice for fire precautions in design and construction of passenger carrying trains

Technical Specifications

Parameter	Value
Chamber Internal Dimensions	3,000mm (W) × 3,000mm (D) × 3,000mm (H)
Light Source	Dedolight Classic Series Tungsten 100W (12V DC)
Light Characteristics	2000-3000 lm, 2800K-3200K color temperature
Photocell Type	Silicone with spectrum reaction conforming to CIE Photopic Observer
Overall Dimensions	3150mm (W) × 3150mm (D) × 3150mm (H)
Weight	240kg

Key Features

Test Chamber Construction

27 cubic meter internal volume (3000mm cube)
SUS 304 stainless steel interior with iron spray exterior
Teflon-coated dark inner walls resist corrosion and prevent reflection interference
Observation windows and laboratory door for test monitoring
Transparent glass plates on side walls for light source/receiver installation
Ground-level ventilation holes maintain atmospheric pressure balance

Measurement System

Desktop fan for smoke agitation
Centrifugal fan for smoke elimination
Remote ignition system for operator safety
Imported light source with constant current control for stability
Silicon photocell with cosine calibration and color filter for human-eye matching
Built-in touch screen computer and printer

Optical Performance

Constant current source control for reliable data
0.01% optical gear position accuracy
≤4% matching error with 1% overall linear accuracy

Installation Requirements

Electrical: 110V AC 60Hz / 230V AC 50Hz
Operating Temperature: 10°C to 35°C

The apparatus continuously measures optical transmittance changes as smoke blocks the light path, providing minimum transmittance values and achievement times for comprehensive smoke density analysis.
