EN 13036-4 Compliant Pendulum Slip Resistance Tester with 1500g Pendulum Weight and 410mm Center of Gravity Distance

Name: EN 13036-4 Compliant Pendulum Slip Resistance Tester with 1500g Pendulum Weight and 410mm Center of Gravity Distance
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL609
Price: 4,500.00 USD
Availability: InStock

Brand Name:	Skyline
Model Number:	SL-FL609
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Weight Of Pendulum::

1500g ± 30g

Distance From The Center Of Gravity Of Pendulum To The End:

410mm ± 5mm

The Static Pressure Of The Rubber Sheet On The Ground:

22.2N ± 0.5N

22.2N ± 0.5N:

126mm ± 1mm

Distance From The Lower Edge Of The Rubber Sheet To The Swing Center Of The Pendulum:

510mm ± 2mm

Dimension Of Rubber Sheet:

6.35mm X 25.4mm X 76.2mm

Shore Hardness Of Rubber Sheet:

55 ± 5 HD

Pointer:

Weight ≤85g, Length 300mm ± 1mm

The Angle Between The Rubber Sheet And The Horizontal:

26 ± 3°

Machine Dimension:

620*450*590 (About 14kg)

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

EN 13036-4 compliant slip tester

pendulum slip resistance tester

road surface slip testing equipment

Product Description

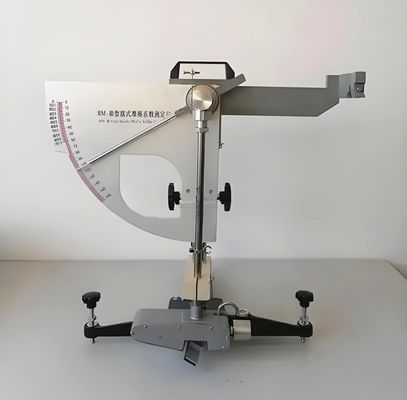

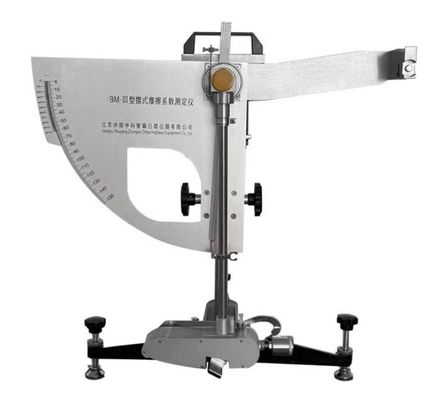

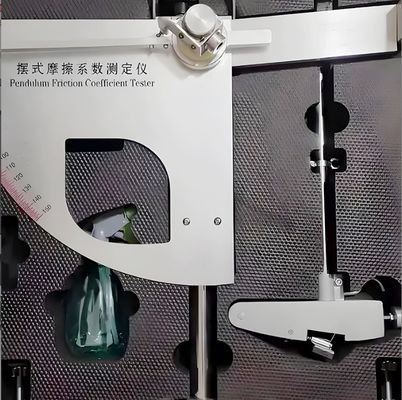

EN 13036-4 Compliant Pendulum Slip Resistance Tester for Road and Airfield Surface

EN 13036-4 Pendulum Slip Resistance Tester

Product Introduction

This pendulum slip resistance tester is designed for friction coefficient detection in high-grade highways, laboratories, and airport runways. It also evaluates anti-slip performance of rubber runways, floor tiles, and other surfaces requiring anti-slip properties. The instrument can be adjusted to evaluate anti-slip values by replacing the film hardness to 96 or adjusting the normal static pressure from 22.2N to 24.5N. Additionally, it determines the polishing value of test pieces after stone material accelerated polishing machine tests, serving as an essential testing instrument for such equipment.

Standard

EN 13036-4

Technical Parameters

Parameter	Value
Weight of pendulum	1500g ± 30g
Distance from center of gravity to the end	410mm ± 5mm
Static pressure of rubber sheet on ground	22.2N ± 0.5N
Sliding length of pendulum on road surface	126mm ± 1mm
Distance from lower edge of rubber sheet to swing center	510mm ± 2mm
Dimension of rubber sheet	6.35mm x 25.4mm x 76.2mm
Shore hardness of rubber sheet	55 ± 5 HD
Pointer	Weight ≤85g, length 300mm ± 1mm
Angle between rubber sheet and horizontal	26 ± 3°
Machine Dimension	620450590 (About 14kg)

Part List

Scaleplate ×1
Spray bottle ×1
Squeegee ×1
Pendulum friction slide & Rubber sheet ×1:
- For Road surface: 6.35mm x 25.4mm x 76.2mm
- For coarse aggregate: 31.75mm x 25.4mm x 6.35mm (Optional)
Rubber sheet ×1:
- For Road surface: 6.35mm x 25.4mm x 76.2mm, 55HD/94HD (Optional)
- For coarse aggregate: 31.75mm x 25.4mm x 6.35mm, 55HD/94HD (Optional)
