Foam IFD Test Machine with 50HZ Frequency 600x500x800mm Dimension and 70±5 Times/Min Test Speed for Compression Hardness Testing

Name: Foam IFD Test Machine with 50HZ Frequency 600x500x800mm Dimension and 70±5 Times/Min Test Speed for Compression Hardness Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T42
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T42
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

200KG

Unit Switch:

KG,N,LB

Max.Stroke:

200mm

Counter:

1-999,999 Cycyles

Power:

220V,50HZ

Dimension:

600*500*800mm(L*W*H)

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

50HZ Frequency Foam IFD Test Machine

600x500x800mm Dimension Compression Hardness Test Machine

70±5 Times/Min Test Speed Foam Tensile Strength Testing Machine

Product Description

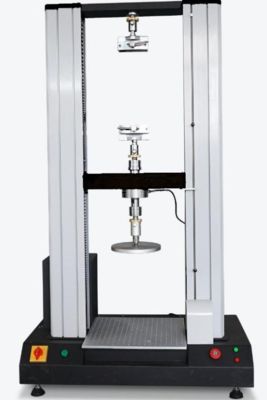

Foam IFD Test Machine Compression Hardness Test Machine

Foam/Sponge Tensile Strength Testing Equipment

This precision testing machine is designed for performing reciprocating impact compression fatigue tests on foam polymeric materials. It accurately measures thickness reduction values and hardness reduction values (residual deformation rate) to determine the dynamic fatigue characteristics of materials.

Key Features

Determines thickness and hardness reduction values
Evaluates dynamic fatigue characteristics of materials
LCD touch screen control interface
Precision load element for accurate measurements
Adjustable test speed of (70 ± 5) times/min
Servo motor with precision ball screw transmission

Testing Standards Compliance

Complies with international standards: ISO 3385 and ASTM D3574

Technical Specifications

Parameter	Specification
Control mode	LCD Touch screen control
Induction mode	Precision load element
Capacity	200kg
Unit switch	Kg, N, LB
Pressure plate	250 mm± 1 mm diameter with 25 mm± 1 mm radius edge, applies maximum force of 750 N ± 20 N
Lower platform	420×420mm, porosity diameter 6mm, spacing 20mm
Maximum stroke	200mm
Test speed	(70 ± 5) times/min (adjustable)
Counter	1-999,999 cycles
Power source	Servo motor
Transmission mode	Precision ball screw
Power supply	Single-phase, 220V, 50Hz/60Hz, 2.5A
Weight	90kg
Dimensions (L×W×H)	600×500×800mm
