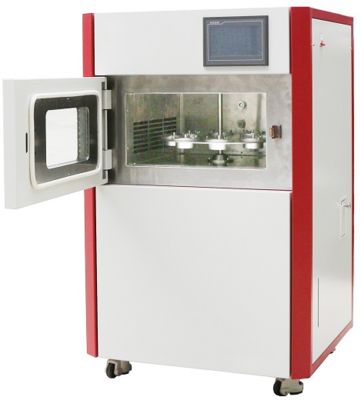

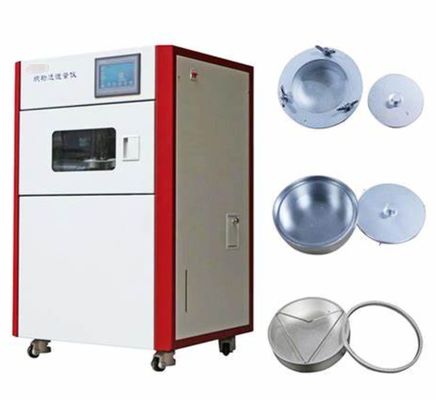

WVTR Water Vapor Transmission Rate Test Chamber for fabrics/ textile/ membrane materials as per ASTM E96

Brand Name:	Skyline
Model Number:	SL-FL609
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Temperature Control Accuracy:

18 ~ 50℃±0.5℃

Temperature Resolution:

±0.1℃

Adjustable Relative Humidity:

40 ~ 95%RH; ±2%RH

Air Flow:

0.1 ~ 0.8m/s

Speed:

1 ~ 15r/min

The Number Of Cups:

8 ASTM Standard For Single Layer

Machine Size:

750×720×1400mm

Weight::

110kg

Power Source:

AC220V 50Hz 3500W

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

WVTR test chamber for fabrics

Water vapor transmission rate tester

ASTM E96 compliant textile tester

Product Description

WVTR Water Vapor Transmission Rate Test Chamber for fabrics/textile/membrane materials as per ASTM E96

WVTR Water Vapor Transmission Rate Test Chamber for fabrics/membrane materials as per ASTM E96

Product Specifications

Attribute	Value
Temperature control Accuracy	18 ~ 50℃±0.5℃
Temperature resolution	±0.1℃
Adjustable relative humidity	40 ~ 95%RH; ±2%RH
Air flow	0.1 ~ 0.8m/s
Speed	1 ~ 15r/min
The number of cups	8 ASTM standard for single layer
Machine size	750×720×1400mm
Weight	110kg
Power source	AC220V 50Hz 3500W

Application

It is used for Water Vapor Transmission Rate tests of various fabrics, membrane materials and coated fabrics.

Test Standards

GB/T 12704, ASTM E 96, JIS L 1099, BS 7209

Features

Touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
Rotating sample placement frame, 1 ~ 15r/min speed adjustable, the test results are more uniform than fixed sample frames.
High precision temperature and humidity sensor, control using PID algorithm with small fluctuation, effectively preventing temperature and humidity overshoot.
Includes temperature and humidity calibration function to avoid sensor deviation caused by long-term use.
MCU control, color touch screen operation, modular design, temperature and humidity digital setting, intelligent control, real-time display of temperature and humidity and timing time.
Input parameters on the touch screen to calculate WVT g/(h.m²), WVP g/(h.MHg.m²), PV g.cm/(h.MHg.m²) value.
Instrument is equipped with PC software, temperature and humidity curve can be recorded, convenient for large data report calculation and printing, suitable for various standards and measurement methods.

Technical Parameters

Parameter	Specification
Adjustable temperature control Accuracy	18 ~ 50℃±0.5℃
Temperature resolution	±0.1℃
Adjustable relative humidity	40 ~ 95%RH; ±2%RH
Air flow	0.1 ~ 0.8m/s
Speed	1 ~ 15r/min
The number of cups	8 ASTM standard for single layer
Machine size	750×720×1400mm
Weight	110kg
Power source	AC220V 50Hz 3500W
