TAPPI T498 Tissue Softness Test Machine

Name: TAPPI T498 Tissue Softness Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLIE
Model Number:	SL-P22
MOQ:	1
Payment Terms:	L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability:	20-30 /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Calibration Certificate, Rosh, CO...

Measuring Range:

(10 ~ 1000) MN

Test Speed:

1.2mm/s

Measurement Time:

15s

Resolution:

1mN

Accuracy:

±1%

Probe Penetration Depth:

8 +0.5mm

Sample Platform Narrow Width:

5mm, 6.35mm, 10mm, 20mm

Parallelism Error On Both Sides Of The Sample Table Slit:

≤0.05mm

Power Supply:

AC 220V ± 22V, 50Hz

Packaging Details:

Exported Plywood Package

Supply Ability:

20-30 /month

Highlight:

TAPPI T498 tissue softness tester

lab tissue softness testing machine

TAPPI tissue softness test equipment

Product Description

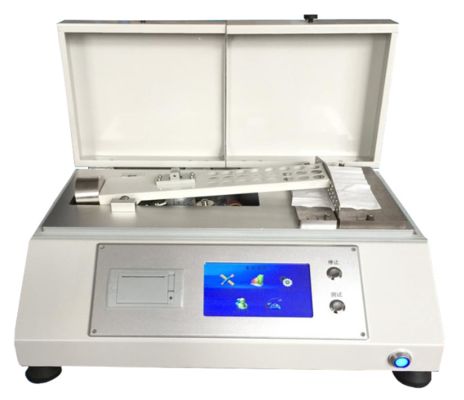

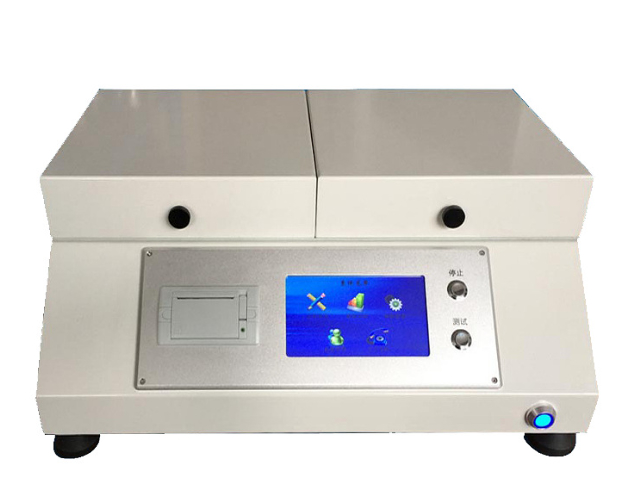

TAPPI T498 Tissue Softness Test Machine

Tissue Softness Tester

Product Overview

The tissue softness tester is a test instrument that simulates the softness of the hand. It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness". It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics.

The instrument test system uses digital control technology controlled by microcomputer, featuring a humanized touch screen display with Chinese and English bilingual operating system. It realizes man-machine dialogue function with advantages of advanced technology, complete functions, reliable performance and easy operation. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries.

Test Principle

Under the specified conditions, when the sample is pressed into a certain depth (about 8mm) by the plate probe of the softness meter, the sum of the maximum vector of the anti-bending force of the sample itself and the friction force between the sample and the gap is called softness, which is expressed in millinewtons. The smaller the softness value, the softer the sample is.

Test Standards

GB/T 8942, QB/T 1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3

Technical Parameters

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Outer box (wooden box), inside the box (buffer material)

Machine Video Demonstration

View on YouTube
