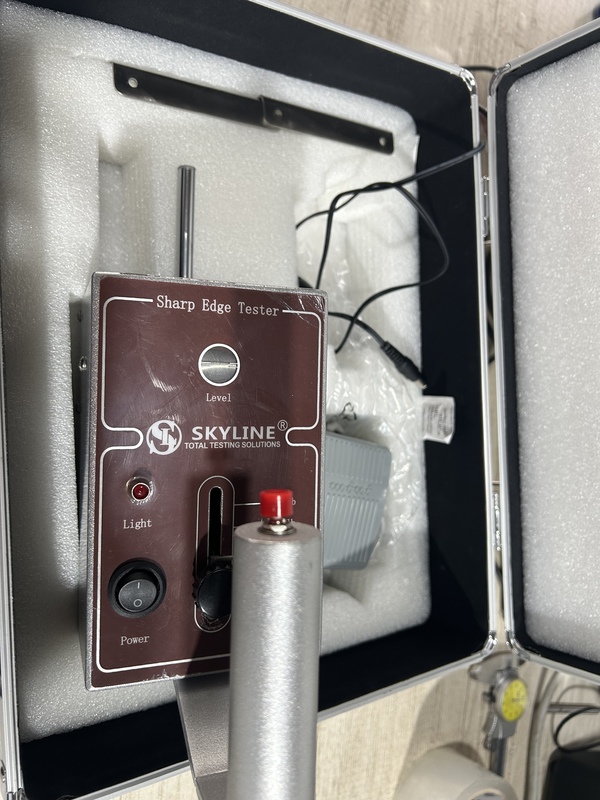

Name: EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S12
Price: 4,500.00 USD
Availability: InStock

Home Products Lab Testing Equipment

EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Poly wooden case
Delivery Time:	3-5 work day
Payment Terms:	T/T
Supply Ability:	1 set/week

Contact Now

Detailed Product Description

Power Supply:	220V,60Hz (Can Be Custom)	Warranty:	12 Months,1 Year,one Year
Weight:	About 13kg	Application:	Children Toy,Children Product
Standards:	EN71-1/ASTM F 963/16CFR1500.49/ISO 8124-1	Capacity:	1.00lbf/1.35lbf/1.5lbf(Can Customized)
Color:	Gray And White,Grey	Dimension:	290x180x115mm
Highlight:	EN71-1 / ISO 8124-1 compliant Sharp Edge Testing Machine , 1.35LB capacity Toys Testing Equipment , 220V power supply EN71-1 Testing Machine

Manual or Foot-Operated EN71-1 / ISO 8124-1 Toys Testing Equipment - 1.35LB Sharp Edge Testing Machine

Machine Introduction

This testing equipment determines whether toy edges present an unreasonable risk of injury by identifying hazardous sharp edges according to international safety standards.

Product Information

The tester evaluates accessible edges on toys to determine injury potential. A PTFE tape-coated mandrel rotates 360° along the test edge. If the tape is cut ≥13mm (50% of circumference), the edge is classified as hazardous. This test is mandatory for toys intended for children under 8 years, both before and after use/abuse testing.

Test Principle

The hardened steel shaft (simulating children's fingers) meets strict specifications:

Surface Rockwell hardness: ≥40
Surface roughness: ≤0.40 microns
Diameter: 9.35mm ± 0.12mm
Applied force: 6N (1.35lb) at 23mm/sec ±4mm/sec rotation speed

The test edge is classified as hazardous if it cuts through the simulated skin tape during rotation.

Testing Procedure & Results Interpretation

Apply PTFE tape to mandrel and rotate 360° along test edge
Edge is hazardous if tape is cut ≥50% of circumference
Test only accessible edges identified during toy evaluation
For untestable edges, simulate conditions or test components separately
Maintain perpendicular alignment and consistent pressure during testing

Technical Specifications

Dimensions (LWH)	291910cm
Weight	3.5kg
Speed	1.00±0.08 In/s
Applied Force	1.35LB
Material	Stainless Steel
Accessories	PTFE Tape Set, Foot Switch, Power Charger, Operating Manual
Compliance Standards	ASTM F963 4.7, EN 71-1 8.11, 16 CFR 1500.49, ISO 8124-1 5.8

Technical Parameters

Table 1: Rotary Mandrel Diameter

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	φ(9.53±0.12)mm	φ(0.375±0.005)inch
Measured Value	φ9.450mm	φ0.3720 inch

Table 2: Applied Force

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	(6±0.5)N	1.35 lbf
Measured Value	6.00N	1.35 lbf

Table 3: Rotation Speed

Standard	EN71-1	ASTM F 963/16CFR1500.49
Nominal Value	(23±4)mm/s	(1.00±0.08)inch/s
Measured Value	19.3mm/s	0.760inch/s

Table 4: Surface Roughness

Standard	EN71-1	ASTM F 963/CFR150.49
Nominal Value	≤0.4 μm	≤16 micro inch
Measured Value	0.15 μm	5.9 micro inch
