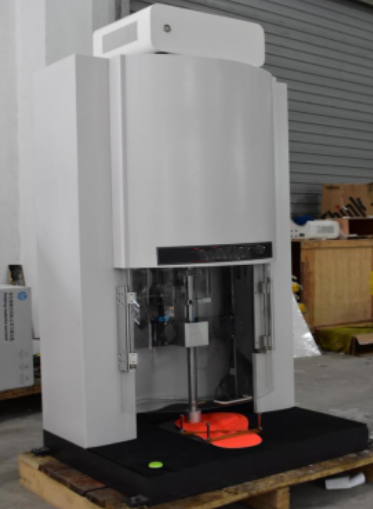

SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight

SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight

  • SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight
  • SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight
SATRA TM 142 Shock Impact Tester 8.5kg 11.9kg Drop Weight
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-SC42
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Poly Wooden Cast
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 1 set/Month
Contact Now
Detailed Product Description
Drop Weight: 8.5kg (5J), 11. 9kg (7J) Test Speed: Test Speed: 2+1 Seconds/cycle
Drop Height: 50mm Load Cell Capacity: 20KN
Power Supply: 1Ω AC 220V Displacement Sensor: 0 - 150mm
Highlight:

SATRA TM 142 shock impact tester

,

lab testing equipment with drop weight

,

8.5kg 11.9kg shock impact tester

SATRA TM 142 Shock Impact Tester

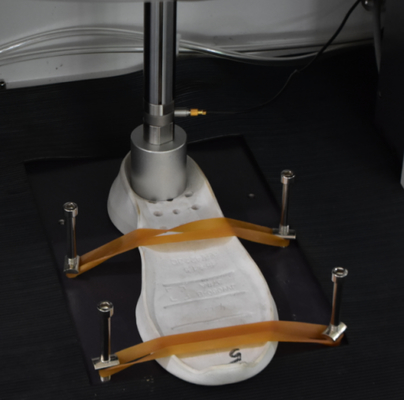

Sports shoe shock absorption testing machine
Machine Introduction
This specialized testing equipment evaluates the shock absorption characteristics and force-displacement relationship of sports shoe midsoles under rapid impact conditions. Ideal for quality control in technical supervision, footwear manufacturing, commodity inspection, arbitration, and research applications.
Key Features
  • High-speed signal processing system captures precise force-time measurements with graphical curve display
  • Advanced software performs multiple consecutive tests (26th-30th cycles analyzed statistically)
  • Customizable report settings with curve analysis tools (zoom, value reading)
  • Comprehensive data and curve printing capabilities
  • Reliable measurement system meeting various standard testing requirements with database management
  • Computer-controlled operation with intelligent software package for flexible testing protocols
  • Password-protected settings to ensure data integrity and prevent unauthorized operation
  • Standardized sample specification settings with memory function for repeated tests
  • Post-test analysis capabilities including unit conversion and graph modification
Measurement Parameters
The system calculates and reports multiple performance metrics including:
  • Peak force (FM) and maximum displacement (DM)
  • Energy measurements (UM, delay energy)
  • Time to peak force (TM)
  • Standardized pressure (PM) and strain (eM)
  • HER (delay energy ratio) and average stiffness (Sm)
  • Peak G measurements
Technical Specifications
Parameter Specification
Operating System High-speed dedicated software
Drop Weight 8.5kg (5J), 11.9kg (7J)
Impact Head 45mm diameter, R1.0±0.25mm radius, <0.2kg weight
Drop Height 50mm standard (adjustable per specimen)
Impact Energy 5J or 7J
Test Speed 2+1 seconds/cycle
Load Cell 20KN capacity, >1000Hz sampling
Displacement Sensor 0-150mm range, >1000Hz sampling (optical encoder)
Drive System 750W imported servo
Power Supply AC 220V
Applications: Quality control for running shoe manufacturers, material research labs, and standards compliance testing.
