Chair Mearsuring Devices CMD Dummy as per EN 1335-1/ ISO 24496

Name: Chair Mearsuring Devices CMD Dummy as per EN 1335-1/ ISO 24496
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-CMD
Price: 4,500.00 USD
Availability: InStock

Brand Name:	Skyline
Model Number:	SL-CMD
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

CMD Size:

1.618*381*657mm; Net Weight: 64Kg (standard)

Adjustable Height Between The Bottom Of CMD And The Test Platform:

2.130-900mm

Effective Width Of The Platform Supporting The Sample Under Test:

800mm

Overall Dimensions:

1080*1385*2150mm

Weight (with CMD):

196 Kg

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

EN 1335-1 chair testing device

ISO 24496 furniture measurement equipment

CMD dummy for ergonomic chair testing

Product Description

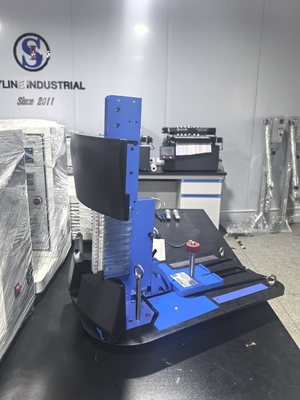

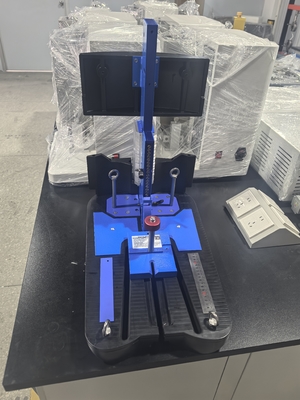

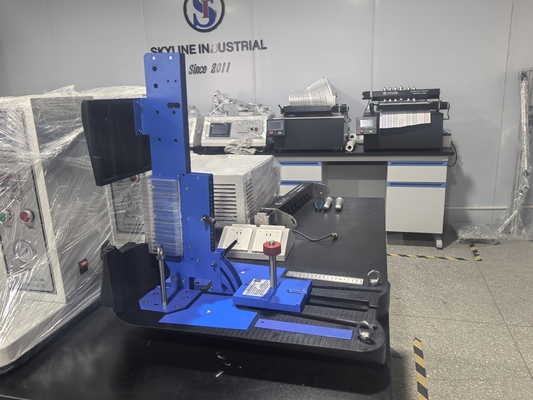

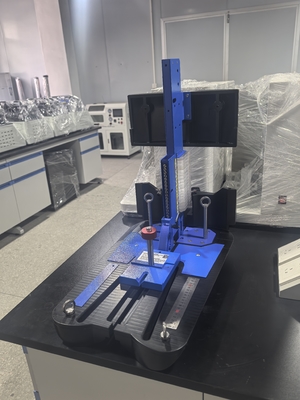

Chair Measuring Devices CMD Dummy as per EN 1335-1/ ISO 24496

Product Specifications

Attribute	Value
CMD size	1.618381657mm; net weight: 64Kg (standard)
Adjustable height between the bottom of CMD and the test platform	2.130-900mm
Effective width of the platform supporting the sample under test	800mm
Overall dimensions	108013852150mm
Weight (with CMD)	196 Kg

EN Office Chair CMD - ISO 24496

Product Features

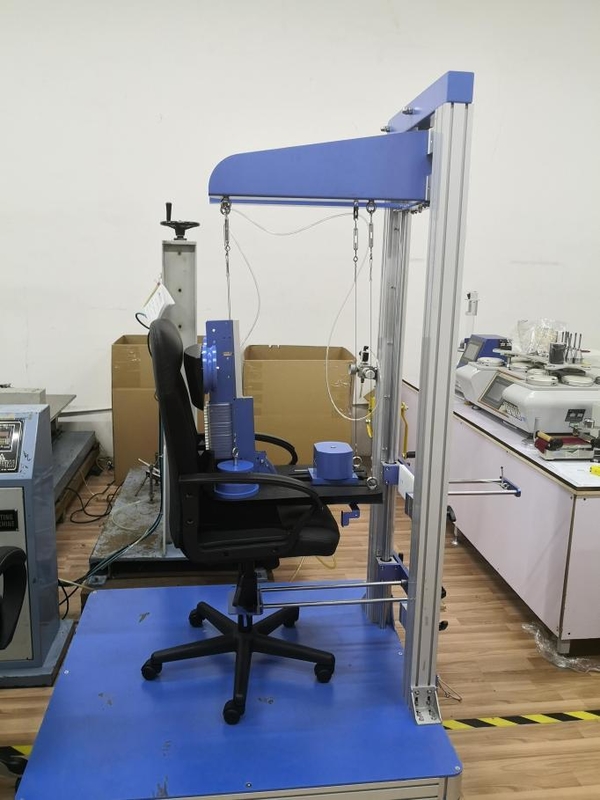

Adjust the height of CMD through the hand winch with self-locking function, allowing CMD to stay at any height
Independent sample support platform with adjustable level via foot height adjustment
Four stainless steel rope independent four-point suspension support fixture maintains CMD in any level state under 40 Newton force
Minimum distance between equipment and ground greater than 80mm for easy level adjustment and forklift transport

Test Standard

ISO 24496, EN 1335-1

Technical Parameters

CMD size: 618*381*657mm; net weight: 64Kg (standard)
Adjustable height between the bottom of CMD and the test platform: 130-900mm
Effective width of the platform supporting the sample under test: 800mm
Overall dimensions: 1080*1385*2150mm, Weight (with CMD): 196 Kg
