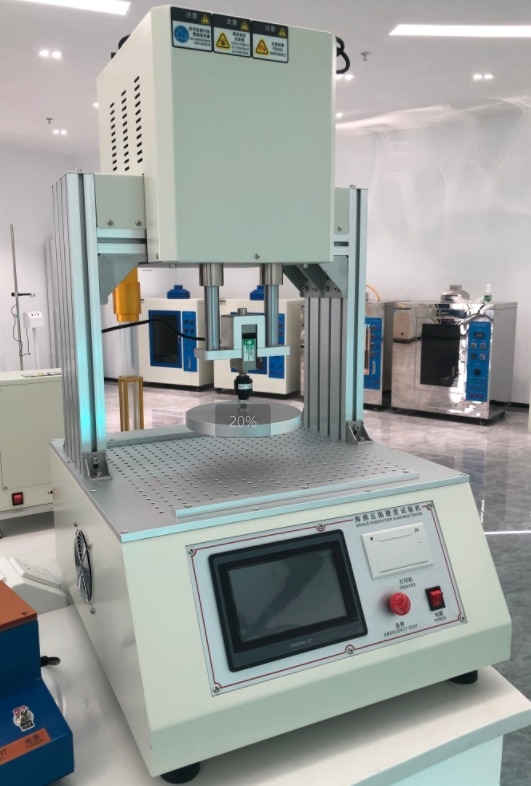

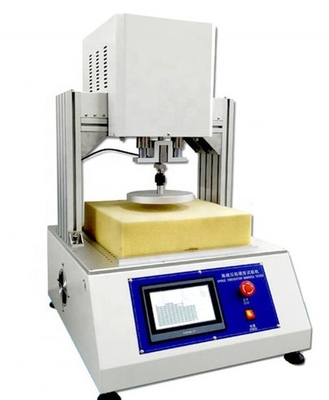

IFD Test Machine Foam Repeat Pounding Fatigue Testing machine Compression Hardness Tester

Name: IFD Test Machine Foam Repeat Pounding Fatigue Testing machine Compression Hardness Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T42
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T42
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

200KG

Unit Switch:

KG,N,LB

Max.Stroke:

200mm

Counter:

1-999,999 Cycyles

Power:

220V,50HZ

Dimension:

600*500*800mm(L*W*H)

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

foam fatigue testing machine

compression hardness tester

furniture testing equipment with warranty

Product Description

IFD Test Machine Foam Repeat Pounding Fatigue Testing Machine Compression Hardness Tester

Key Specifications

Attribute	Value
Capacity	200KG
Unit Switch	KG, N, LB
Max. Stroke	200mm
Counter	1-999,999 cycles
Power	220V, 50HZ
Dimension	600500800mm (LWH)

Product Description

This machine is primarily used for reciprocating impact compression fatigue testing of foam polymeric materials to determine the thickness reduction value and hardness reduction value (residual deformation rate) of samples, enabling evaluation of the material's dynamic fatigue characteristics.

Testing Standards

ISO 3385
ASTM D3574

Technical Parameters

Control mode: LCD Touch screen control
Induction mode: Precision load element
Capacity: 200kg
Unit switch: Kg, N, LB
Pressure plate: Overall diameter of 250 mm±1 mm with a 25 mm±1 mm radius at its lower edge, with device for applying maximum force of 750 N ±20 N during one loading cycle
Lower platform: 420×420mm, porosity diameter 6mm, spacing 20mm
Maximum stroke: 200mm
Test speed: (70 ±5) times/min (adjustable)
Counter: 1-999,999 cycles
Power source: Servo motor
Transmission mode: Precision ball screw
Power source: Single-phase, 220V, 50Hz/60Hz, 2.5A
Weight: 90kg
Dimension: 600×500×800mm (L×W×H)
