8 Test Stations Pneumatic Button Life Testing Machine with Touch Screen Control and Adjustable Test Speed

Name: 8 Test Stations Pneumatic Button Life Testing Machine with Touch Screen Control and Adjustable Test Speed
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P40
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-P40
MOQ:	1 unit
Price:	negoitable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1 unit

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Calibration certificate

SKYLINE:

Button Life Test Machine

Test Station:

8 (work At The Same Time)

Load Weight:

50, 100, 200, 300, 500g Each Four (optional)

Test Speed:

5~60/min (knob Adjustable, LCD Display)

Working Power:

AC220v, 50HZ

Packaging Details:

Plywood case

Supply Ability:

1 unit

Highlight:

8 Test Stations Button Life Testing Machine

Touch Screen Control Key Durability Tester

Adjustable Test Speed Pneumatic Button Tester

Product Description

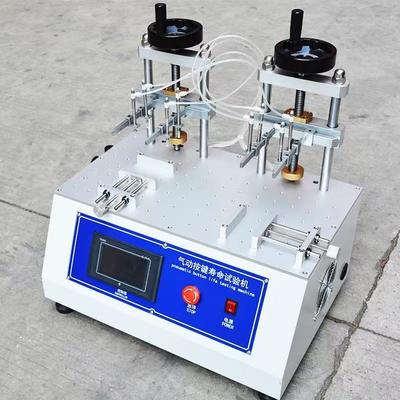

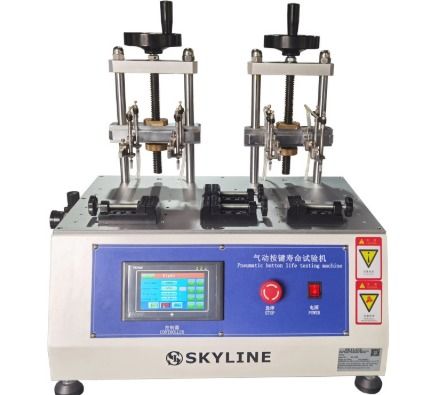

Switches Keyboards Phone 8 Stations Pneumatic Button Life Fatigue Testing Machine

Product Overview

The Pneumatic Key Durability Tester is designed for comprehensive button fatigue testing of mobile phones, remote controls, calculators, walkie-talkies, telephones, and various electronic consumer products. This testing machine utilizes pneumatic cylinders to apply specified press loads, cycles, and speeds to simulate real-world product usage and determine service life.

Key Features

Specialized equipment for precise button fatigue testing applications
Optimized compact structure with small cylinders for accurate impact testing
Adjustable pressing positions and striking speeds for versatile testing capabilities
Direct sensor detection for accurate key life cycle counting
Touch screen control with flexible testing modes - simultaneous or sequential cycling
Stable operation with low noise levels and minimal maintenance requirements

Technical Specifications

Test Station	Dual sample testing capability, each supporting six buttons simultaneously
Control Method	Touch screen interface with direct input for simple, convenient operation
Action Mode	Cylinder-driven probe with reciprocating up and down motion
Test Method	Configurable simultaneous or sequential button activation with flexible pause settings
Test Speed	10-60 cycles per minute with manual adjustment capability
Device Thickness Range	10-50mm compatibility
Clamping System	Bilateral lower cover clamping mechanism
Height Adjustment	Manual direct adjustment system
Machine Dimensions	600 × 450 × 520mm
Power Supply	220V standard input
Weight	Approximately 55kg
