Pneumatic Button Life Testing Machine with 8 Test Stations, Touch Screen Control, and Adjustable Test Speed for Key Fatigue Testing

Name: Pneumatic Button Life Testing Machine with 8 Test Stations, Touch Screen Control, and Adjustable Test Speed for Key Fatigue Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P40
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-P40
MOQ:	1 unit
Price:	negoitable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1 unit

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Calibration certificate

SKYLINE:

Button Life Test Machine

Test Station:

8 (work At The Same Time)

Load Weight:

50, 100, 200, 300, 500g Each Four (optional)

Test Speed:

5~60/min (knob Adjustable, LCD Display)

Working Power:

AC220v, 50HZ

Packaging Details:

Plywood case

Supply Ability:

1 unit

Highlight:

8 Test Stations Button Life Testing Machine

Touch Screen Control Key Fatigue Tester

Adjustable Test Speed Pneumatic Button Tester

Product Description

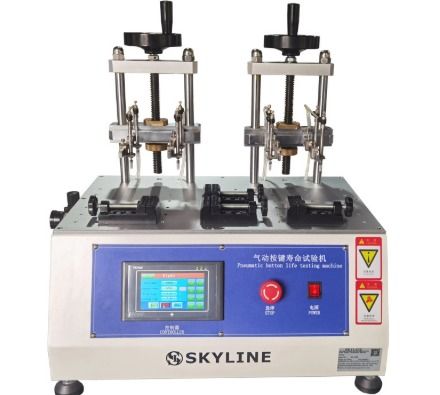

Pneumatic Button Life Testing Machine Key Fatigue Durability Tester for Switches Keyboards Phone

Product Overview

The Pneumatic Button Life Testing Machine is designed for conducting key fatigue tests on mobile phones, remote controls, calculators, walkie-talkies, telephones, and various other electronic consumer products. This specialized equipment utilizes a driving cylinder to apply specific press loads, cycles, and speeds to product buttons in sequential order (1-2-3-4-5-6), accurately simulating real-world usage conditions to determine product service life.

Key Features

Specialized device specifically designed for button fatigue testing applications
Compact, rationally designed structure with adjustable pressing positions and striking speeds suitable for various button types
Direct key life counting through integrated sensor technology
Touch screen control interface supporting both cyclic testing and simultaneous testing modes
Stable operation with low noise levels and minimal maintenance requirements

Technical Specifications

Test Station	Capable of testing two samples simultaneously, each handling six buttons
Control Method	Touch screen input with direct action control for simple operation
Action Mode	Cylinder-driven probe with reciprocating up and down motion
Test Method	Configurable simultaneous button activation or sequential activation of six buttons, with customizable pause settings
Test Speed	10-60 cycles per minute with manual adjustment capability
Mobile Phone Thickness Range	10-50mm compatibility
Clamping Fixture	Bilateral lower cover clamping system
Height Adjustment	Manual direct adjustment mechanism
Machine Dimensions	600×450×520mm
Power Supply	220V
Weight	Approximately 55kg
