IEC 61032 Compliant Test Probe 11 Rigid Finger Probe with Anti Shock and 75N/50N Test Force

Name: IEC 61032 Compliant Test Probe 11 Rigid Finger Probe with Anti Shock and 75N/50N Test Force
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P11
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-P11
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Materials:

Nylon Stainless Steel

Nodular Finger Length:

80mm

Nodular Finger Diameter:

12mm

Dam-board Diameter:

50mm

Dam-board Thickness:

5mm

Standard:

IEC61032-Probe 11-Figure 7

Packaging Details:

Export Packaging

Highlight:

IEC 61032 Compliant Test Probe

Anti Shock Rigid Finger Probe

75N/50N Test Force Test Device

Product Description

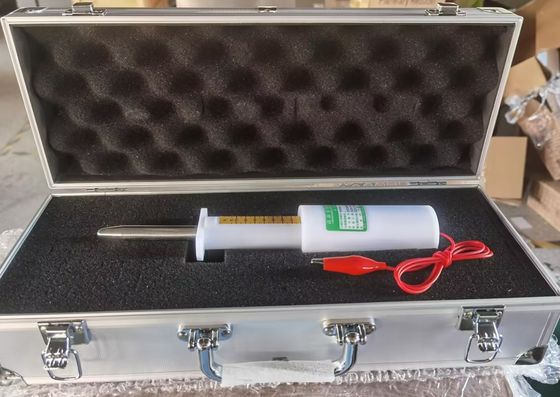

Test Probe 11 Rigid Finger Probe Anti Shock Test Device

Compliant with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, and multiple international safety standards including GB8898, IEC60065, IEC60598, GB7000, IEC60335, and GB4706. This device is designed to test the mechanical strength of housing openings and internal baffles.

Available with adjustable test force options:
• 10-50N thrust configuration
• 10-75N thrust configuration

Test Finger Usage Guidelines

This test probe evaluates accessibility to hazardous parts by simulating finger contact with electrical components and mechanical barriers.

The finger portion must not contact energized parts or approach dangerous components
The 50mm-20mm stopper must not be penetrated during testing
Thrust application is required for testing protection against access to hazardous parts

Technical Specifications

Materials	Nylon + Stainless Steel
Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Dam-board Thickness	5mm
Standard Compliance	IEC61032 Figure 7
Force Range	10-75N
