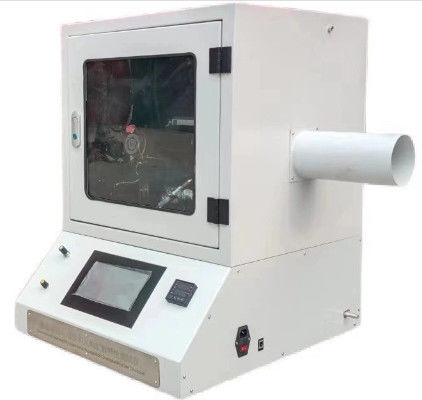

Conveyor Belt Vertical Burning Test Chamber with ISO 340 Standard, 10.5mm Bunsen Burner, and 0°～45° Adjustable Rotation

Conveyor Belt Vertical Burning Test Chamber with ISO 340 Standard, 10.5mm Bunsen Burner, and 0°～45° Adjustable Rotation

Brand Name:	SKYLINE
Model Number:	SL-FL856V
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Materails:

Steel

Standards:

ISO340

Bunsen Burner:

The Inner Diameter Is 10.5mm

Bunsen Burner Rotation Angle:

0°～45° Adjustable

Thermocouple:

Type K Armor

Thermocouple Display Range:

0～1300℃

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

ISO 340 Standard Conveyor Belt Vertical Burning Test Chamber

10.5mm Bunsen Burner Flammability Test Chamber

0°～45° Adjustable Rotation Conveyor Belt Burning Test Machine

Product Description

Conveyor Belt Vertical Burning Test Chamber

This advanced testing equipment is designed for evaluating the flammability and flame propagation characteristics of conveyor belts and steel cord conveyor belts with textile bodies. The system performs comprehensive testing on both horizontally and vertically oriented conveyor belt samples.

Testing Scope & Applications

Suitable for conveyor belts and steel cord conveyor belts with textile bodies. Specifically designed for testing flammability and flame propagation characteristics of horizontally oriented conveyor belt samples.

Testing Principle

The testing methodology involves exposing the ends of horizontally oriented conveyor belt specimens to controlled flames for specified time periods. The system evaluates conveyor belt response to ignition sources on a small scale, measuring flame duration after burner removal and afterglow duration following flame extinction with controlled air streams.

Compliance Standards

Manufactured in strict accordance with:

AS 1334.10 1994 - "Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts"
ISO 340-2022 - "Conveyor Belts - Laboratory Scale Flammability Characteristics - Requirements and Test Methods"

Key Testing Definitions

Flame Duration: Continued sample burning after 60 seconds following burner removal
Afterglow: Slow burning without visible flame
Flame Period: Total flame duration during single test group
Afterglow Period: Total afterglow time during single test group
Acceptance Test: Compliance verification per AS 1334.10 1994 technical requirements
Type Certification: Comprehensive product quality identification and evaluation per AS 1334.10 1994
Vertical Test: Testing methodology according to ISO 340-2022 standards

Technical Specifications

Parameter	Specification
Ignition Time Setting Range	0–999.9 seconds
Combustion Timing Range	0–999.9 seconds
Bunsen Burner	10.5mm inner diameter
Bunsen Burner Rotation Angle	45°–90°
Thermocouple	Type K armor
Thermocouple Display Range	0–1300°C
Test Flame Temperature	1000±20°C
Flame Ruler	50–150/180mm
Combustion Chamber Dimensions	500mm × 500mm × 500mm
Combustion Gas	Propane gas, purity > 95%
Overall Dimensions (W×D×H)	555mm × 651mm × 738mm
Approximate Weight	≈40kg
Power Supply	AC 220V ±10%, 50–60Hz
