Products

Home / Products / Flammability Testing Equipment /

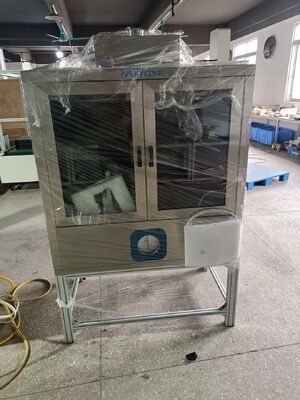

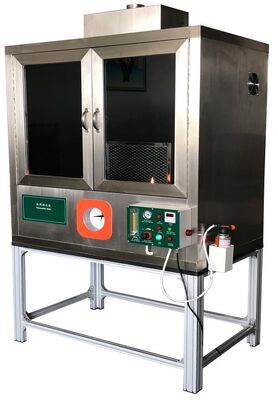

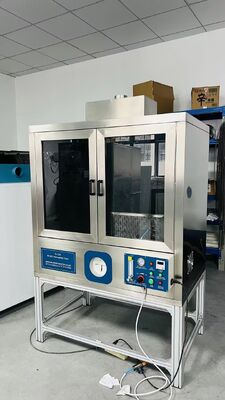

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

Name: BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S34
Price: 4,500.00 USD
Availability: InStock

Brand Name:	Skyline
Model Number:	SL-S34
MOQ:	1
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Small Stainless Steel Testing Frame:

450X300X150mm

Inner Dimensions Of Backrest Frame:

450±2×450±2mm

Inner Dimensions Of Chair Frame:

450±2×300±2mm

Big Stainless Steel Testing Jig:

450X450X300mm

The Airflow Of Butane:

45 ± 2mL / Min（when 25℃)

Flame Height:

35mm

Stainless Steel Combustion Tube Outer Diameter:

Outer Diameter: 8.0±0.1mm Inner Diameter: 6.5±0.1mm Length: 200+/-5mm

Packaging Details:

plywood case

Supply Ability:

15 sets per month

Highlight:

Stainless Steel Frame Flammability Tester

35mm Flame Height BS 5852 Tester

450X450X300mm Testing Jig Furniture Flammability Tester

Product Description

BS 5852 Flammability Tester for Upholstered Furniture and Foam Testing

This professional testing equipment evaluates the ignitability of furniture assemblies when exposed to specific heat sources, providing essential reference data for furniture design and manufacturing.

Design Overview

Product Application

This machine simulates the ignitability of specific furniture assembly components when exposed to controlled heat sources, delivering critical reference data for furniture design and manufacturing processes.

Testing Standard

BS 5852

Technical Specifications

Small Stainless Steel Testing Frame: 450×300×150mm

Inner dimensions of backrest frame	450±2×300±2mm
Inner dimensions of chair frame	450±2×150±2mm

Large Stainless Steel Testing Jig: 450×450×300mm

Inner dimensions of backrest frame	450±2×450±2mm
Inner dimensions of chair frame	450±2×300±2mm

The airflow of butane	45 ± 2mL / min (when 25℃)
Flame height	35mm
Stainless steel combustion tube specifications	Outer diameter: 8.0±0.1mm Inner diameter: 6.5±0.1mm Length: 200±5mm

Optional Accessories

No. 0 Fire source: Cigarettes - Length: 68mm, Diameter: 8mm, Weight: 1g, Combustion speed: 50mm/12.03min
White polyester cloth - BS 5852
Wooden Frame - BS 5852
No. 5 Wooden Frame - BS 5852
No. 6 Wooden Frame - BS 5852
No. 7 Wooden Frame - BS 5852
Flame-retardant foam - BS 5852
Combustible foam - BS 5852
CaCI2.6H20 - BS 5852
NaHCO3 - BS 5852
Wetting agent - BS 5852
Nozzles - BS 5852
