Name: Spring Cushion Tester Zigzag Spring Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-TF753
Price: 4,500.00 USD
Availability: InStock

Home Products Furniture Testing Equipment

Spring Cushion Tester Zigzag Spring Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Skyline
Certification:	CE, Rosh, Calibration
Model Number:	SL-TF753

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	7 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Contact Now

Detailed Product Description

Test Force:	1.3 KN	Maximum Stroke:	150mm
Test Speed:	Constant Speed 100±20 Mm/min	Electric Cylinder Speed:	1~80mm/s
Pressure Sensor Accuracy:	0.3% FS	Stroke Accuracy:	±0.2mm
Counter:	0～999,999 Times	Display:	Touch Screen Display, PLC Control
Machine Dimension:	(L×W×H) About 1100×1100×1200mm	Weight:	About 100kg
Report Output:	USB Output

SL-F753 Zigzag Spring Tester

EQUIPMENT DETAILS

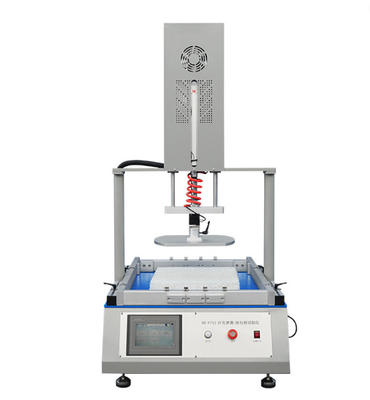

Spring Cushion Tester Zigzag Spring Test Machine 0

(For reference only)

PRODUCT DESCRIPTION:

It used to assess the durability test for snake spring, spring framework, and package spring. And it complies to the following requirements:

1. Durability Test

The durability test can repeat according to the pre-set strength, also the frequency can be set, and the machine will stop automatically when times up.

2. Relationship between compression stroke and pressure range

Under pressure by pre-set schedule, in place to stop. Read the spring force of the stroke on the pressure gauge, the display shows the stroke value

3. Spring pressure testing under the specific amount of compression

The machine will stop when the platen press to the set pressure, the length of the compression stroke of the pressure will display on the screen.

TECHNICAL PARAMETERS:

Maximum pressure	100kg
Maximum stroke	150mm
Test speed	Constant speed 100±20 mm/min
Electric cylinder speed	1~80mm/s
Pressure sensor accuracy	0.3% FS
Stroke accuracy	±0.2mm
Counter	0～999,999 times
Display	Touch Screen display, PLC control
Machine Dimension	(L×W×H) about 1100×1100×1200mm
Weight	About 120kg
