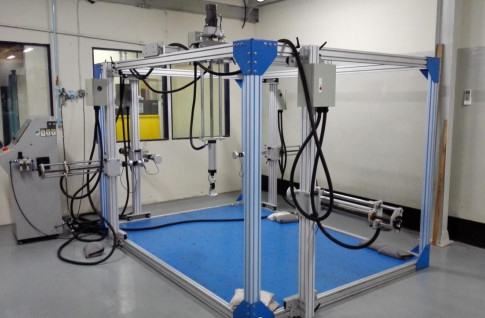

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/

Brand Name:	Skyline
Model Number:	SL-T
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	15 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Basic Test Frame:

3x3x2m,be Made Of 80x80mm Alu.material

Load Air Cylinder:

Seating Load: 200kg; Back Load:100kg; Arm:100kg; Leg:100kg

Force Sensor:

High Precision Brand Sensors 7 Sets

Control Method:

PLC And LCD Touch Screen

Counter:

0~999999 (adjustable)

Force Adjust:

Precision Pressure Valve Equipment With Sensor To Display

Air Supply:

7kgf/cm^2

Power Supply:

1∮ AC 220V 50Hz 5A

Capacity:

200kg (Imported Sensor)

Packaging Details:

plywood case

Supply Ability:

15 sets per month

Product Description

furniture universal tester/ en 1728, en 12520 chair test machine/ multifunctional testing machine/

Product Introduction

This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements

Test Standards

EN 1728, EN 12520

Technical Parameters

Basic Test Frame	3x3x2m,be made of 80x80mm Alu.material
Load air cylinder	Seating load: 200kg; Back load:100kg; Arm:100kg; Leg:100kg
Force sensor	High precision brand sensors 7 sets
Control method	PLC and LCD touch screen
Counter	0~999999 (adjustable)
Force adjust	Precision pressure valve equipment with sensor to display
Air supply	7kgf/cm^2
Power supply	1∮ AC 220V 50Hz 5A

STANDARD ACCESSORIES:

Capacity

200kg (Imported Sensor)

Controller and Interface

Programmable logic controller + touch screen interface

Accessories

Chair Armrest Fixture x 4 pieces

2 for durability test; 2 for strength test

Seat loading pad x 1 piece

for chair seat static load & durability tests

Smaller seat loading pad x2 pieces

for Chair Front edge static load & durability tests

Back loading pad x 1 piece

for chair back static load & durability tests

Leg loading pad x 1 pieces

for horizontal cylinder for balance load

Impactor x 1 piece

for chair seat impact test

standard foam x 1 piece

for chair seat impact test

Impact hammer x 1 piece

for chair back & arm impact test;

Air Pressure

7 bar

1. All load, cycle rate, speed can be adjusted by the controller.

2. The test results can be output by Word.

3. The actuator is easy adjust to perform Vertical and horizontal static test.

TEST ITEMS FOR CHAIR SEAT,BACK,ARM WITH STRENGTH AND DURABILITY SETS REFERS TO EN BS EN 1728 & EN12520

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 0

NO.	Name	Pictures
1	Seat surface loading block
2	Seat back loading pad (square)
3	Small seat surface loading pad (200MM)
4	Universal loading pad
5	Armrest test fixture
6	Block for Height
7	Impact block
8	Impact Hammer
9	350x350x25mm Test Foam
10	CMD Loading point template

TEST IMAGE FOR ARM STRENGTH & DURABILITY TESTS

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 11

TEST IMAGE FOR ARM & BACK IMPACT TESTS

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 12

TEST IMAGE FOR SEAT IMPACT TEST

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 13

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 14

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 15

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 16

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 17

Table Test Equipment/ Chair Test Machine BIFMA X5.1/BIFMA X5.4 Furniture Universal Test Equipment/ 18
