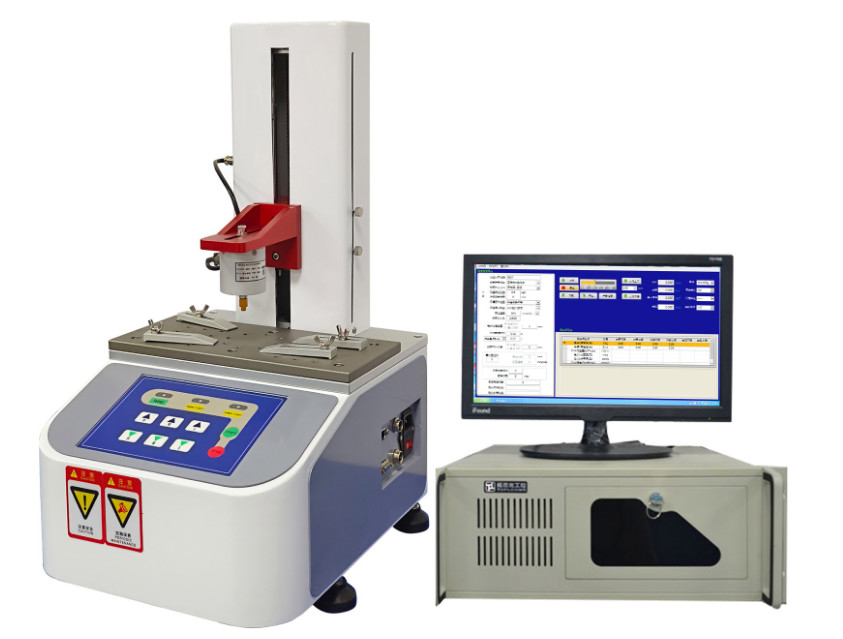

Key-switch Loading Curve Testing Machine Calculator Button Load Curve Tester

Product description

Applicable to various keys and switches (load-displacement) curve, test, use WINDOWS Chinese window screen to setting, simple and convenient operation, and all data can be stored (test conditions, displacement curve graph, life curve graph, check report ----, etc.)

Features

※ PEAK FORCE, RETURNFORCE, short, and the CLICK rate and so on all can be directly displayed on the map values, not artificial calculation.

※ The measurement curve graph is memorized by the computer and can be zoomed in or out at any time. An A4 sheet of paper can be used to place N curve graphs at will.

※ The measurement items can input upper and lower limit specification values, and the measurement results can be automatically determined as OK or NO.

※ The maximum measurement stroke and load can be input, and it is automatically controlled by a computer.

※ The test report can be converted into document report formats such as EXCEL.

※ The test report can be generated automatically and no further input is required.

The title of the test report can be modified at any time.

The test conditions are all set on the computer screen, which is convenient and fast.

The test data are stored on a hard disk. (Each piece of data can be stored as many times as you like.)

※ The computer directly prints and stores the force displacement curve graph and checks the report. (no need to graph paper, general A4 paper)

※ The load units displayed are N, Ib, g and kg, which can be freely switched.

Test Interface
