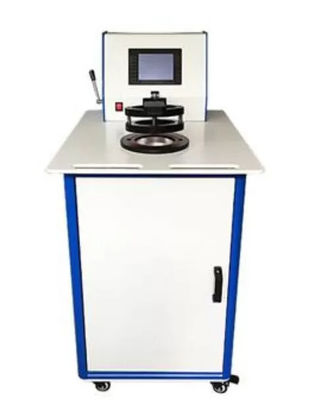

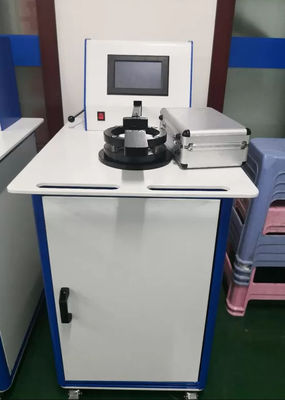

DIN 55887 Standard Air Permeability Tester with 0.1 ～ 12000mm/s Range and High-Precision Swiss Sensor for Foam Testing

Name: DIN 55887 Standard Air Permeability Tester with 0.1 ～ 12000mm/s Range and High-Precision Swiss Sensor for Foam Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F07
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-F07
MOQ:	1 unit
Payment Terms:	MoneyGram,Western Union,T/T,D/P
Supply Ability:	1 unit/ week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SKYLINE:

Air Permeability Tester

Standard:

DIN 55887

Pressure Range:

0 ～ 4000Pa

Measurement Error:

≤ ± 2%

Measurable Fabric Thickness:

≤15mm

Measurable Air Permeability:

0.1 ～ 12000mm / S

Power Source:

AC 220V ± 10V 50Hz

Dimension:

600 × 700 × 1100mm (L × W × H)

Packaging Details:

plywood case

Supply Ability:

1 unit/ week

Highlight:

Sponge Air Permeability Tester

Foam Air Permeability Tester

Mattress Foam Air Permeability Tester

Product Description

Mattress Foam Air Permeability Tester

Professional instrument for testing air permeability of foam, sponge, fabrics, and various sheet materials.

Applications

Designed for rapid measurement of permeability across various materials including coated fabrics, filter paper, filter materials, plastics, industrial fabrics, knit goods, non-woven fabrics, and industrial filter paper.

Standards Compliance

GB/T5453, GB/T13764, ISO9237, ISO7231, ISO5636, BS5636, ASTM D737, DIN 53887, JIS L1096

Performance Features

High-precision Swiss pressure sensor for superior accuracy
Intelligent touch interface with dynamic test display
Automatic detection and conversion of air permeability measurements
Configurable standard parameters and units for international testing
Multiple measurement units: mm/s, cfm, cm³/cm²/s, I/m²/s, I/dm²/min, m³/m²/min
Certified computer permeability test software
Internationally accredited laboratory measurement calibration

Technical Specifications

Pressure Range	0-4000Pa (self-set pressure drop)
Air Permeability Range	0.1-12000mm/s
Measurement Error	≤ ±2%
Fabric Thickness Capacity	≤15mm
Sample Areas	5cm², 20cm², 50cm², 100cm²
Sample Diameters	Ф50mm (≈19.6cm²), Ф70mm (≈38.5cm²)
Nozzles	10 pieces included
Data Processing	≤1000 trials capacity
Power Requirements	AC 220V ±10V 50Hz
Dimensions	600 × 700 × 1100mm (L × W × H)
Weight	80Kg

Nozzle Specifications

Code	01	02	03	04	05	06	07	08	09	10
Diameter φ(mm)	1.2	2	3	4	6	8	10	12	16	20

Testing Procedure

Measure airflow through fabric area at constant pressure drop of 10cm head of water
Clamp specimen over air inlet using rubber gaskets
Activate pump to draw air through the sample

Documentation

Company Profile Technical Brochure
