Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture

Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture

  • Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture
  • Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture
Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 45 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Mattress Integrated Testing Machine Stroke: 250mm
Speed: Sinusoidal Brand: SKYLINE
Number Of Cycles: 16 2 /min Warranty: 18 Months
High Light:

durability testing machine

,

spring testing equipment

Four In One Integrated Mattress Testing Machine 0.05 - 1000 Mm/Min For Furniture


Product Information of Mattress Testing Machine

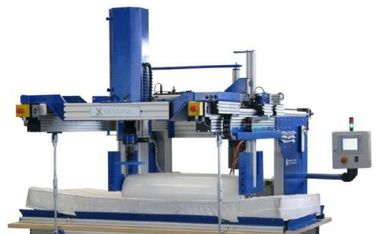

New design Mattress Test Machine (Four in one)
It is more compact and smart than the old model with the following features:
Flexible test table frame. This makes the testing device very effective and space-saving.
Multi-function can do below testing:

  1. a. Durability Testing of mattress surface
  2. b. Hardness Testing
  3. c. Height Testing
  4. d. Durability test for the edge of mattress

Controlled by PLC frequency conversion
After simply loosening the front frame reinforcement the specimen can be inserted into a flexible test table frame. This makes the testing device very effective and space-saving.
The extensive testing and evaluation software LabMaster allows for a flexible parameter entry, the execution of different testing procedures, a graphical representation of measured values, test evaluation, and logging.

The firmness rating Hs are determined independently by the programmed. When the pre-set number of cycles is reached, the test is ended automatically


Specification of Mattress Testing Machine

  • Field of application Testing of components for beds according to EN 1957
  • Specimens Mattresses, cushion frames
  • Number of cycles, testing procedure Loading unit can be parameterized with PLC
  • measuring device is software controlled
  • definition of testing procedures can be done by the user
  • Electrical connection 230V/50Hz
  • Compressed-air supply Not necessary
     Maximum dimensions  2.0 m x 1.2 m x 0.3 m
     Loading unit Roll, active load  1400 7N
     Stroke  250 mm
     Speed  sinusoidal
     Measuring device  load Load measuring range :0-2 kN
     Measuring device  position Resolution:<1µm
     Measuring range max  500 mm
     Speed  0.05-1000 mm/min
     Dimensions  transport B x T x H 1460 x 2810 x 2050 mm
     Dimensions  installed B x T x H 2100x2810x2350mm
     Weight  1300 kg


Testing Standards of Mattress Testing Machine



EN1957.QB171952.2
