UL 1439 Sharp Edge Tester Toy Test Machine

UL 1439 Sharp Edge Tester Toy Test Machine

  • UL 1439 Sharp Edge Tester Toy Test Machine
UL 1439 Sharp Edge Tester Toy Test Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S12U
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Size: 184mm×35mm×52mm Weight: 132g
Packing Size: 250mm*130*90(Approx) Gross Weight: 450g(Approx)
Test Standard: UL 1439 Testing Head: Optional(21 Pieces/Box)
Highlight:

UL 1439 Sharp Edge Tester

,

Toy Test Machine

Application


This sharp edge tester is made as per standard UL1439 and it is used for testing the products of electrical equipment including toys, computers, daily home electrical equipment and see whether these equipments has sharp edges which will harm people. It is a equipment of safety testine.



Specifications


Size:184×35×52 mm
Weight:132 g
Optional Accessories:Two boxes standard testing heads



Way to use


1.Put the pressure testing cap on the tester
2.Put the pressure testing cap closes to the tested edge and move the cap along the tested edge for 2 inches with a 0.68kg force, then return to the starting point. The whole distance will be 4 inches
3.After the movement, check the pressure testing cap. If the outermost 2 layers(the simulative skin) have been scratched off, the edge is considered as the sharp edge.

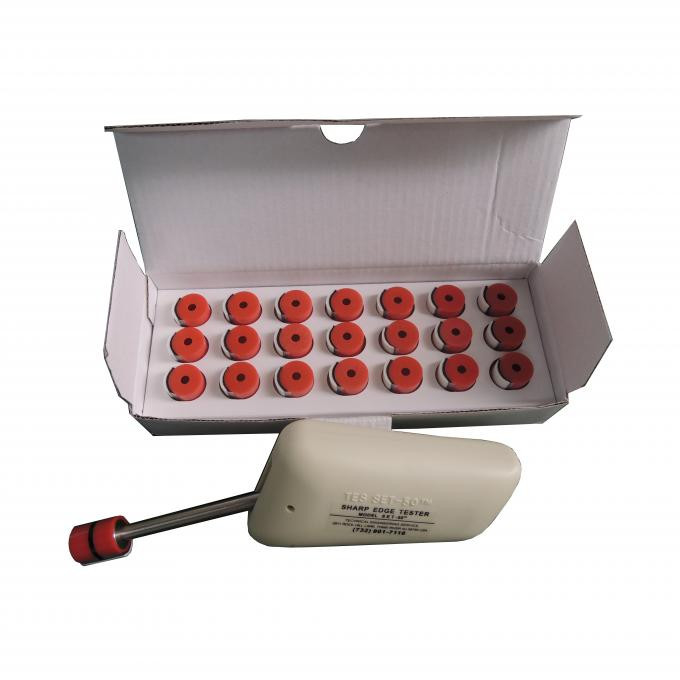

Actual Image



UL 1439 Sharp Edge Tester Toy Test Machine 0

Tag:

stability test chamber,

swing durability tester,

swings testing equipment
