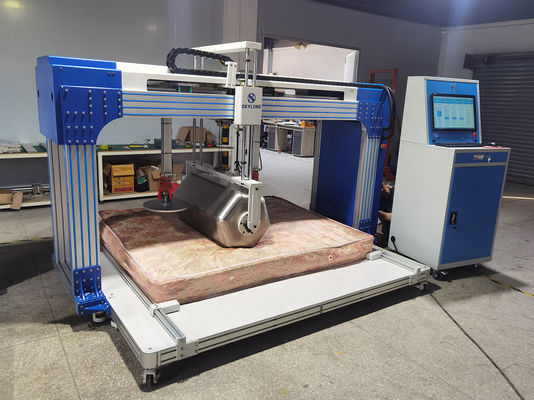

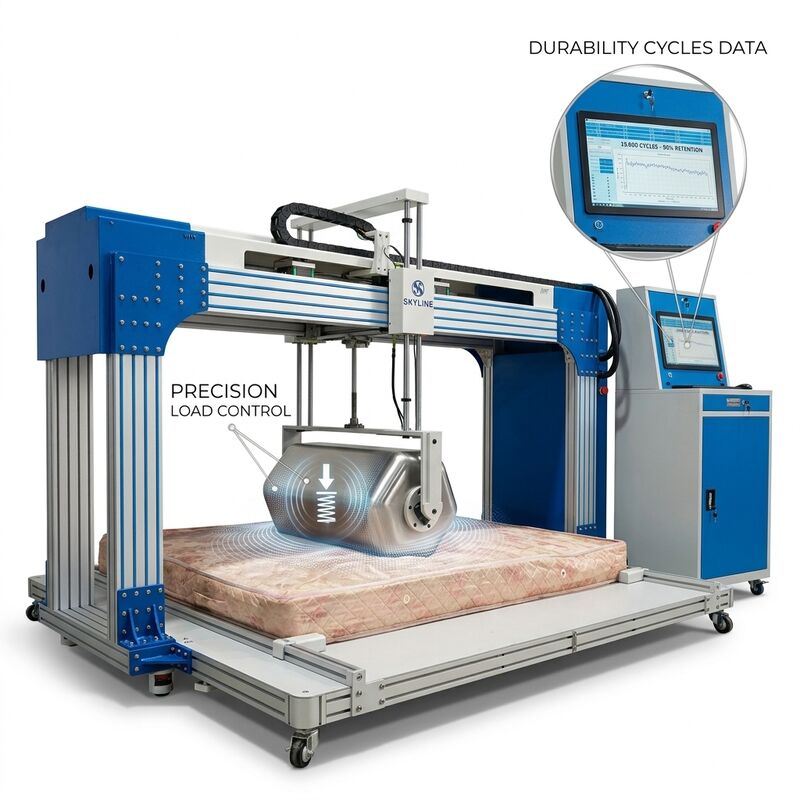

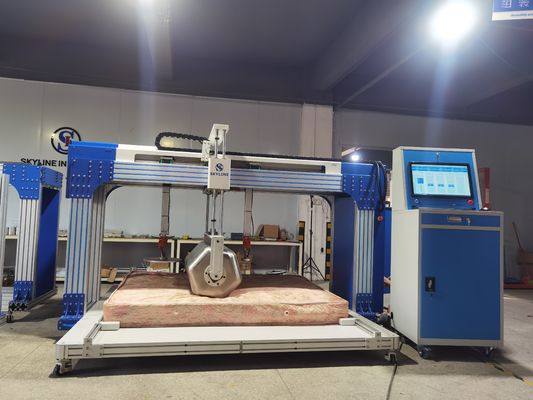

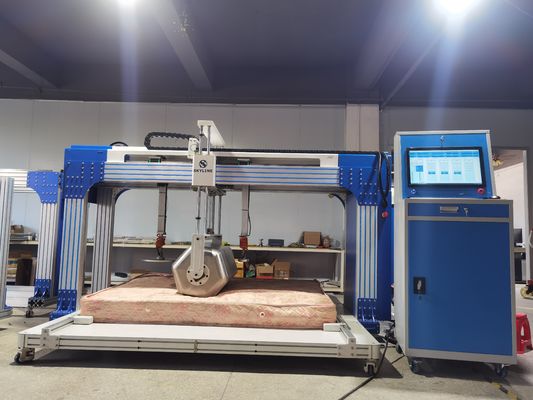

EN1957 Standard PLC+ Touch Screen Servo Motor Mattress Integrated Testing Machine

Name: EN1957 Standard PLC+ Touch Screen Servo Motor Mattress Integrated Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T07I
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T07I
MOQ:	1 unit
Price:	negotiated
Payment Terms:	Western Union,T/T,
Supply Ability:	1 pcs/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SKYLINE:

Mattress Rollator Testing Machine

Controller:

PLC+ Touch Screen

Motor:

Sevro Actuator

Standard:

ASTM F1566, EN1957

Stainless Steel Roller:

52KG

Cylinder Weight:

140 KG

Packaging Details:

Plywood case

Supply Ability:

1 pcs/ month

Highlight:

Integrated Mattress Testing Machine

Touch Screen Mattress Testing Machine

EN1957 Mattress Testing Machine

Product Description

EN1957 PLC+ Touch Screen Servo Motor Integrated Mattress Testing Machine

SL-T07I Mattress Integrated Testing Machine

Product Introduction

This mattress durability testing machine determines the durability and hardness of any type of mattress and boxspring unit by simulating long-term use conditions. Suitable for testing boxspring mattresses, innerspring mattresses, and polyurethane mattresses.

Test Standards

EN1957, ASTM F1566, QB/T1952-2, GB/T26706

Technical Parameters

Parameter	Specification
Capacity	2kN Sensor*1
Servo motor	0.4kW2, 1.5kW1
Cylinder stroke	Stroke 500mm, Max thrust 1.39kN
Control mode	PLC and LCD touch screen
Test Speed	10～20 times/min (GB/EN 16±2 times/min, ASTM 20 times/min MAX)
Rolling stroke	GB/EN Rolling 250mm left and right from the center \| Total rolling distance from the center if 70% of the mattress, and the max is 965mm
Rolling drive	Servo motor with synchronous belt drive
Accuracy of detector	Displacement accuracy: ±0.1mm; Loading accuracy ±0.1N (0.1-480N)
Roller	GB/EN Round Cylinder: 140kg, Length 1000mm, Diameter 300mm, R20mm \| ASTM Hexagonal barrel: 109kg, Length 36±3in (915±75mm)
Rolling fatigue test	GB/EN Round Cylinder: 30000 cycles \| ASTM Hexagonal barrel: 100000 cycles
Bed edge durability test	Capacity 1000N, test cycles 5000
Max. mattress size	2200x2000x400mm (LWH)
Power Supply	1∮ AC 220V 50Hz
Air Source	≥6kg/cm²
Main Test Items	Rolling Fatigue Test, Hardness Test, Height Loss Test

Durability Test Specifications

Component	GB/EN Standard	ASTM Standard
Roller	Round Cylinder: 140kg, Length 1000mm, Diameter 300mm, R20mm	Hexagonal barrel: 109kg, Length 36±3in (915±75mm)
Rolling fatigue test	30000 cycles	100000 cycles
Maximum mattress size	2.2m×2.5m
Test speed	0-20r/min
Control method	PLC+ touch screen
Dimension	3000mm×1510mm×2010mm
Power	AC220V±10%, 50/60Hz, single phase
Accessory	One Hexagonal barrel, Cylinder weight

Height Loss and Hardness Test

Parameter	EN1957 Standard	ASTM F1566 Standard
The loading platen	355 mm diameter, spherical curvature radius 800mm front edge curvature radius 20mm	344 +/-5 mm diameter, 1mm radius bottom edge
The loading speed	20 ~ 300mm/min
Test run	500mm
Capacity	200kg

Durability Test of Bed Edge (EN)

Parameter	Specification
Test load capacity	1000N
Test Cycle	5000
Driving Method	Air Cylinder
Hold time	Maintain for (3+/-1)s

Key Features

The whole machine frame made of high quality aluminum, with smart and elegant shape

Delta brand PLC and Servo Motors

Machine configuration two motors, one for vertical roller movement, and the other for horizontal drum drive

Machine configuration alarm device, indicating safe operation

Electric lifts the Roller, easy to operate

PLC controller with large colorful touch panel

Automatically stops after preset cycles completed

Over moving limit protection

Wooden roller softly contacts the surface of the mattress

Competitive Advantages

1. Stainless Steel/Nylon Roller
Will not be affected by climate changes, preventing mold or dry cracking. Longer lifespan than wooden rollers.

2. Servo Electric Cylinder Drive
Higher value, quieter operation, better performance, higher accuracy, and more accurate test results.

3. Track Oil Pressure Protection
Automatically applies lubricating oil to the track, reducing mechanical wear. Extends machine life without manual maintenance.

4. Air-Cooled Cooling System
Cools the machine during operation, preventing overheating during long-term durability tests. Ensures machine performance and extends service life.

5. High-Speed Wiring
Ultra-high flexibility wiring suitable for long-term high-speed operation, minimizing circuit aging and poor contact issues.
