Drawer Guidings and Fittings Durability Test Machine Furniture Tester with Stable Air Source

Drawer Guidings and Fittings Durability Test Machine Furniture Tester with Stable Air Source

Brand Name:	Skyline
Model Number:	SL-F31
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
Supply Ability:	30 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, Rosh, Calibration

Maximum Stroke:

400mm

Test Height:

25cm~90cm (from The Floor)

Speed:

0.25m/s, (adjustable)

Control Mode:

Touch Screen

Volume (WxDxH):

97x40x120cm

Weight (approx):

≈95Kg

Power Source:

1∮ AC 220V 50Hz 3A

Air Source:

≥6kgf/cm2 Stable Air Source

Packaging Details:

plywood case

Supply Ability:

30 unit / month

Highlight:

Drawer Guidings Durability Test Machine

Drawer Fittings Durability Test Machine

Drawer Guidings and Fittings Furniture Tester

Product Description

Introduction

1. Usage:
* This tester is suitable for testing the durability of drawer slides mounted on furniture.
* This tester is extended to the test of other products with linear motion trajectory, such as flat sliding doors, Windows, etc.
2. Principle:
* Place a certain load in the drawer, pull out and close the drawer repeatedly, and check whether the slide can meet the requirements of use after a certain number of cycles.
3. Standard:
*This tester is made according to the relevant requirements of GB/T 10357.5 standard.

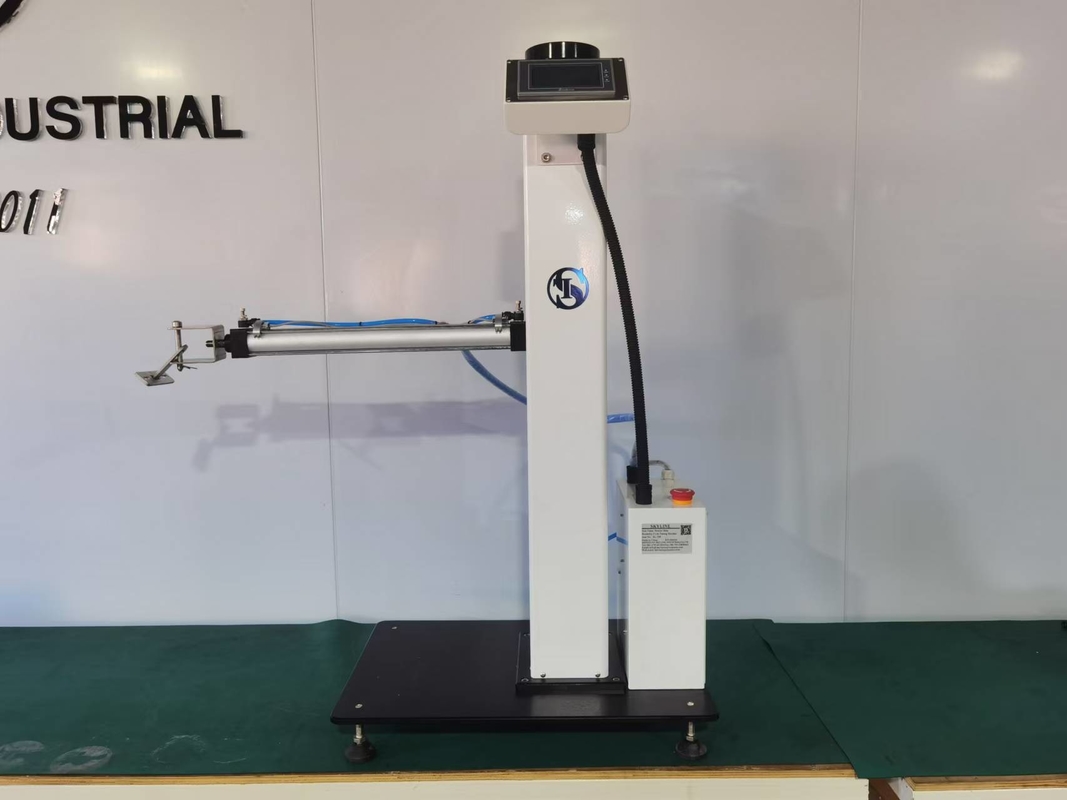

Instrument Structure

Drawer Guidings and Fittings Durability Test Machine Furniture Tester with Stable Air Source 0

1. Function Description:

Cylinder: Perform the test action

Sensor: Adjustable motion stroke, that is, drawer pull out length

Drawer connection block: Used to connect drawer handles for test action

Base: Place the machine on the ground smoothly

Height adjustment hand wheel: Adjust the height of the drawer connection block to fit the different height of the drawer

Controller: control the instrument action, set the test parameters

Power switch: Press to turn on the power of the instrument, turn clockwise to power off

2. Instrument Specification

Item	Specification
Maximum stroke	400mm
Test height	25cm~90cm (from the floor)
speed	0.25m/s, (adjustable)
Control mode	Touch screen
Volume (WxDxH)	97x40x120cm
Weight (approx)	≈95Kg
Power source	1∮ AC 220V 50Hz 3A
Air source	≥6kgf/cm2 Stable air source
