Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | calibration certificate |
| Model Number: | SL-PL001 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Pen-Core Circle Writing Tester | Number Of Samples: | 8 / Time |
|---|---|---|---|
| Test Diameter: | ≤26mm | Pen Reciprocating Movement: | Travel 100mm |
| Writing Angle: | 60-90° Adjustable | Dimension: | 72cm*57cm*48cm |
| Weight: | 60kg | Packing Dimension: | 79cm*64cm*71cm |
| Gross Weight: | 90kg | ||
| Highlight: | Ballpoint Pen Writing Testing Machine,Marker Pen Writing Testing Machine |
||

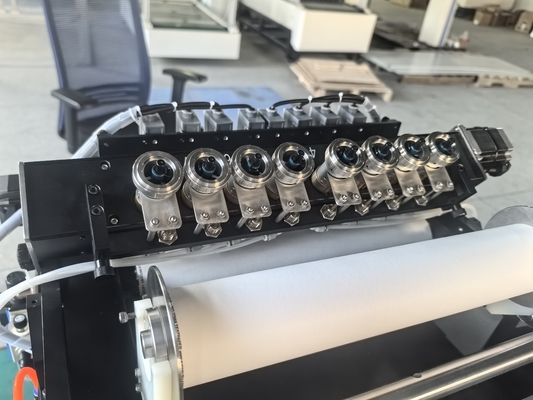

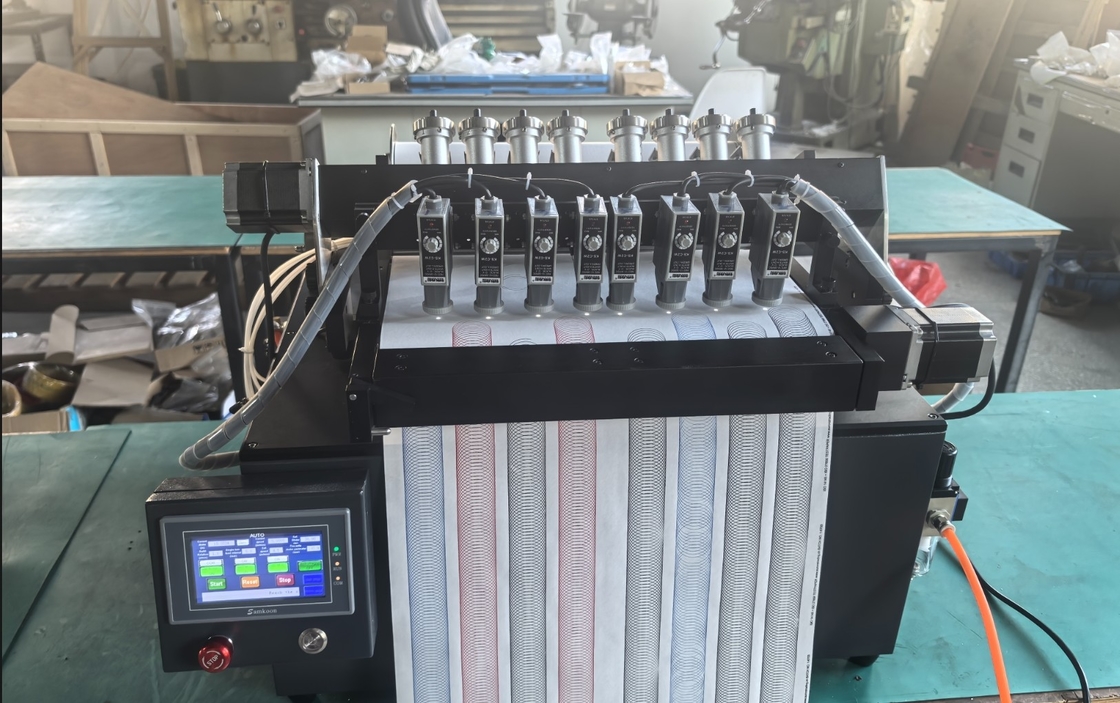

ISO 27668-1 Write Test Machine for Detect Ballpoint Pens and Marker
Application
Can be used to detect ballpoint pens, neutral pen core, detection marker and whiteboard pen, can meet the two types of writing machine functions. The writing machine can detect the initial writing performance of the pen core, inking, line length, the written wear and other writing performance indicators, can also detect ink writing quality, is a pen factory, pen core factory, Ink factory indispensable testing equipment.
Principle
The machine simulates the state of writing with a pen, puts the sample on a certain load, and writes a circle mark at a certain speed to check whether the structure and performance of the sample are intact.
Main parameters
|
Name |
Write Test Machine |
|
Manufacturers |
SKYLINE |
|
Number of samples |
8 / time |
|
Test Diameter |
≤26mm |
|
The rotary speed of the core |
0-2 to min (digital input set) |
|
Pen reciprocating movement |
Travel 100mm |
|
Writing Speed |
0-10m/min (digital input settings) |
|
Paper Speed |
0-1000mm/min (digital input setting) |
|
Writing angle |
60-90° adjustable |
|
Writing Length |
0-6000m |
|
Reminding function |
After testing the instrument automatically stop (the pen automatically lift) |
|
Paper-draw back function |
Instrument with paper collection |
|
Weight |
60kg |
|
Dimension |
72cm*57cm*48cm |
Feature
Have a measure of knowing how long a pen wrote for.
Be able to detect when the pen runs out of ink and stop the process.
can count and calulate the total cartridge length
Pen-Core Circle Writing Tester.pdf
