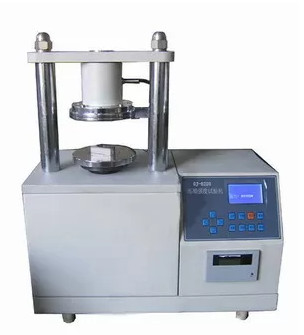

Edge Strength Testing Machine Digital Ring Crush Tester for Paper and Cardboard Testing

Name: Edge Strength Testing Machine Digital Ring Crush Tester for Paper and Cardboard Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T810
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T810
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

60 ~ 5000 N

Linking Piece:

￠100 Mm

Accuracy:

Value For + / - 1%

Testing Stroke:

500-1500 Mm

Weight:

52 Kg

Machine Dimension(L*W*H):

500 * 270 * 270 Mm (W * D * H)

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

Cardboard Edge Strength Testing Machine

Paper Edge Strength Testing Machine

Digital Ring Crush Tester

Product Description

Machine Introduction

Quality testing can be performed on a variety of paper ring crush, horizontal pressure, side pressure, adhesive and general compressive 5 kinds of tests.

Principle

This machine with high precision sensor, the software analysis in digital show the strength of specimen. Specimens will be placed in the film, the specimens with clamp, and then pressure evenly, make sample free bulging with film, until broken sample, applying a maximum hydraulic specimens pop strength values. The ring compression testing machine is designed for mechanical and electrical integration structure, use of modern mechanical design concept and microcomputer processing techniques for rational design meticulously. Instrument adopts the press table stationary and high accuracy of measurement. Standard of instrument has contained in the various parameters testing, conversion, adjust, data printing, etc. Has powerful data processing function, can direct the statistical results of all information, convenient operation, easy adjustment, stable performance.

Test standard

CNS2956, JISP8126, TAPPIT472, GB/T2679.6-1996, GB/T6548-1998

Technical parameters

Capacity	60 ~ 5000N
Accuracy	value for + / - 1%
Resolution	1 N
Linking piece	￠100 mm
Pressure plate spacing	75 mmPhase
The test speed	12.7 mm/min
Geometric error	Flatness < 0.05 mm
Parallelism error is less than	1/2000 x B (B is circular clamp diameter)
Marion	1/4 HP
Size	500 * 270 * 270 mm (W * D * H)
Weight	52 kg
Power supply	130, AC220V, 1.5 A
