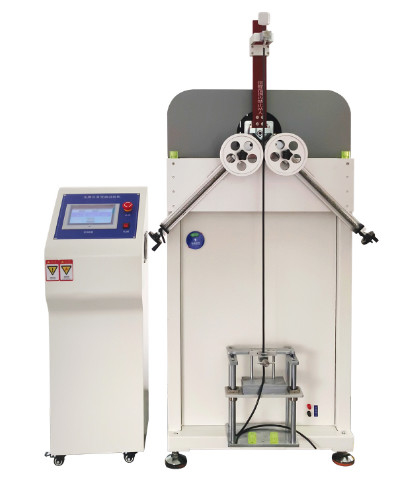

IEC 60794-1-21-2015 Cable Bending Test Machine 90° Bending Durabity Optical Fiber Tester

Name: IEC 60794-1-21-2015 Cable Bending Test Machine 90° Bending Durabity Optical Fiber Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-C110
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-C110
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Bending Angle:

±90 °

Bending Velocity:

0 To 30 Times Per Minute

Counter:

1 To 999999

Bending Weight:

1.5kg To 5kg

Power Supply:

AC220V+10%, 50~60Hz

Machine Weight:

Apporx.200kg

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

90° Bending Cable Bending Test Machine

Optical Fiber Cable Bending Test Machine

Product Description

Machine Introduction

This equipment is suitable for testing the ability of optical cable to withstand repeated bending, by applying repeated bending force, for qualified optical cable requires that the optical fiber is not broken, the attenuation change of the optical fiber does not exceed the value specified in the optical cable product standard, and the optical cable sheath does not crack.

Test Standard

IEC 60794-1-21-2015

Feature

The equipment adopts man-machine interface and PLC control, TFT true color screen display test parameters and test data, the fixed position of the cable on the swing arm can be adjusted, the configuration of different weights and bending wheels with different bending radii can meet the access network with the butterfly introduction of the cable and other cable repeated bending testing machine, speed inorganic speed regulation. Beautiful shape, stable performance, simple operation, safe use.

Technical Parameter

Repeated bending Angle	±90 °
Repeated bending velocity	The value ranges from 0 to 30 times per minute
Number of repetitions	The value ranges from 1 to 999999
Weight bracket	1.5 kg
Hanging Weight	1.5kg 2.5kg 4kg 4.5kg 5kg
Bending wheel diameter	50mm, 150mm, (replace according to test requirements)
Distance from cable fixture to disc cutting point	250mm
Host power supply	Single-phase, AC220V+10%, 50~60Hz, 0.75kW
Machine Weight	200kg
