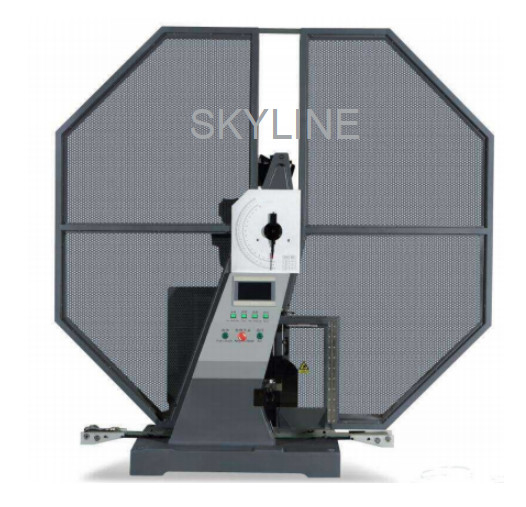

SL-750CZ Metal Impact Test Machine Microcomputer Controlled Pendulum Impact Testing Machine

SL-750CZ Metal Impact Test Machine Microcomputer Controlled Pendulum Impact Testing Machine

  • SL-750CZ Metal Impact Test Machine Microcomputer Controlled Pendulum Impact Testing Machine
SL-750CZ Metal Impact Test Machine Microcomputer Controlled Pendulum Impact Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-750CZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Model: SL-750CZ Air Pressure: 0.4-0.7MPA
Power: 0.37KW/380V±10％ 50/60Hz(Can Customize) Weight: Approx.1200kg
Dimension: 2220×900×2220(With Protection Net) Sample Specimen: 55×10×10 Mm
Highlight:

Microcomputer controlled pendulum impact testing machine

,

Microcomputer controlled impact testing machine

,

SL-750CZ Metal Impact Test Machine

Machine Introduction:

This machine of impact testing machine is a high stiffness host, microcomputer control PLC unit automatic sample delivery(Optional), positioning, impact, integrated control mode, measurement record and automatic saving, is currently the domestic high-tech level of pendulum impact testing machine,it is powerful, stable and reliable, accurate and easy to operate. It is an ideal test equipment for testing the impact resistance of metal materials under dynamic load and judging the toughness and brittleness of materials.

This series of impact testing machine can test the impact resistance of metal materials at normal temperature.

Machine Details:

Dimension:2220×900×2220(With Protection Net)
Weight:Approx.1200kg
Motor Power:0.37KW/380V±10％ 50/60Hz(Can Customize)

Test Standard

ISO 148:1998
<Metallic materials-Charpy pendulum impact test>

ASTM E23-07a
<Standard Test Methods for Notched Bar Impact Testing of Metallic Materials>

Technical Parameter


ModelSL-750CZ
The Maximum Impact Energy≥750J
Effective service range10%-90%FS
Pendulum prelift Angle≥150°
The distance from the axis of the pendulum≥750mm
to the center of impact
Pendulum hammer weight21.872KG-300J
Moment of pendulum241.1544N.m
Impact speed5.24m/s
distance between anvil tips≥40mm
Anvil corner radiusR1-1.5mm
Anvil rake Angle11°±1°
Impact edge Angle30°±1°
Impact edge radiusStandard2mm Impact blade2mm-2.5mm
Optional8mm Impact blade8mm±0.05mm
8mm Impact edge Angle radius0.1mm-1mm
8mm Impact blade width4mm ±0.05mm
Impact blade width16-20mm
Impact blade thickness16mm
Sample specimen55×10×10 mm
Automatic test impact completion time＜5S
Number of installed samples≥20pieces
Air pressure0.4-0.7MPA
