BIFMA 5.1 Office Chair Seat Impact Testing Machine Seat Impact Durability Tester/Drop Impact Test Machine

Name: BIFMA 5.1 Office Chair Seat Impact Testing Machine Seat Impact Durability Tester/Drop Impact Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T02
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T02
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Test Standard:

BIFMA X5.1, BSI/BS 5459, EN 581-2，DIN 4551, EN 1335, NEN 1812,

Test Speed:

10-30times/min

Sample Height:

300-600mm

Drop Weight:

57kg、102kg、136kg

Drop Height:

30mm、36mm、152mm

Power Supply:

AC 220V 50Hz 5A

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

Office Chair Seat Impact Testing Machine

Seat Impact Durability Tester

BIFMA 5.1 Seat Impact Testing Machine

Product Description

Equipment Description

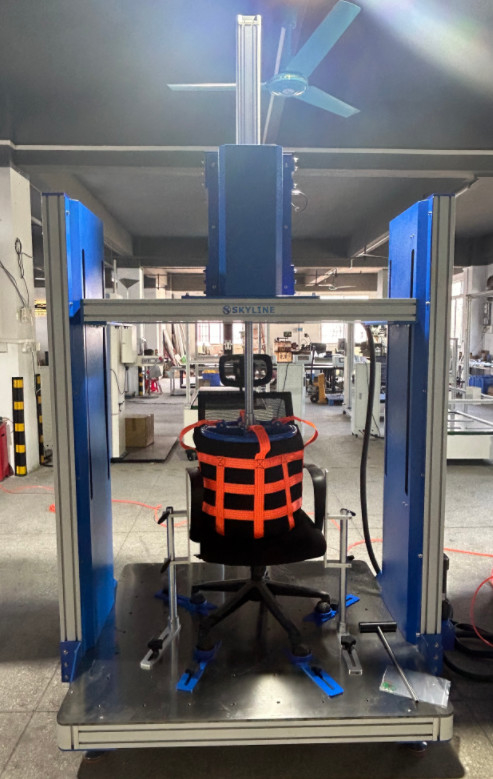

Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

EQUIPMENT DESCRIPTION

Test Parameter

Impact head component weight	25kg
Seat height	30~65cm
Loading times	0~99999times,adjustable
Testing speed	10~30 times/min
Impact height	152mm
Control	PLC,text display
Beams lifting way	Electric lift
Air supply	6kgf/cm^2 customer provides it for himself
Power Supply	AC 220V 50Hz 5A
Accessories	Impact Bags, Weights, Fixture
