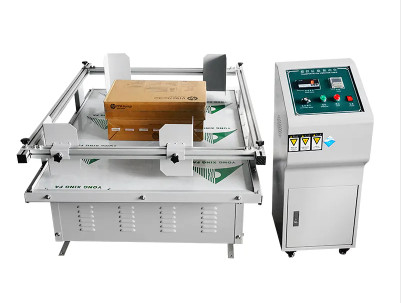

ISTA Transportation Testing / Vibration Test Machine

ISTA Transportation Testing / Vibration Test Machine

ISTA Transportation Testing / Vibration Test Machine
ISTA Transportation Testing / Vibration Test Machine
ISTA Transportation Testing / Vibration Test Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-P21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Max. Test Load: 1KN Frequency Range: 60-300rpm
Amplitude Range: 25.4mm (1 Inch) Simulation Speed: 25~40km/h
Vibration Mode: Roundtrip Work Table Size: 1000*1200 Mm ( L*W, Can Be Customized)
Highlight:

ISTA Transportation Vibration Test Machine

,

ISTA Vibration Test Machine

Packaging Dimensions:



Packaging Dimensions: (WxDxH) 1300*1240*980mm

Power supply source: Three-phase,220V±10%, 50/60Hz

Gross Weight: 270kg



Feature:



1. Cost friendly, which is only 10% of the same products in the USA;

2. Adopts synchronous mute belt drive for low noisy;

3. Rail-type specimen holder, easy operation and safety;

4. Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;

5. AC motor adjusts speed for smooth operation and large load ability;



Specifications:



Max. Test Load 1KN
Frequency Range 60-300rpm
Amplitude Range 25.4mm (1 inch)
Simulation Speed 25~40km/h
Vibration Mode Roundtrip
Work Table Size 1000*1200 mm ( L*W, can be customized )
Outside dimension ( L*W*H ) 1255*1070*660mm
Speed Mode DC converter or AC Frequency Control
Power Capacity 1 HP
Weight 150kg
Power 220V, 50 Hz
Speed Mode DC converter or AC Frequency Control
Environmental Conditions Temperature: 5~40°C; Related Humidity <85%



Operation Principle:



ISTA Transportation Testing / Vibration Test Machine 0
