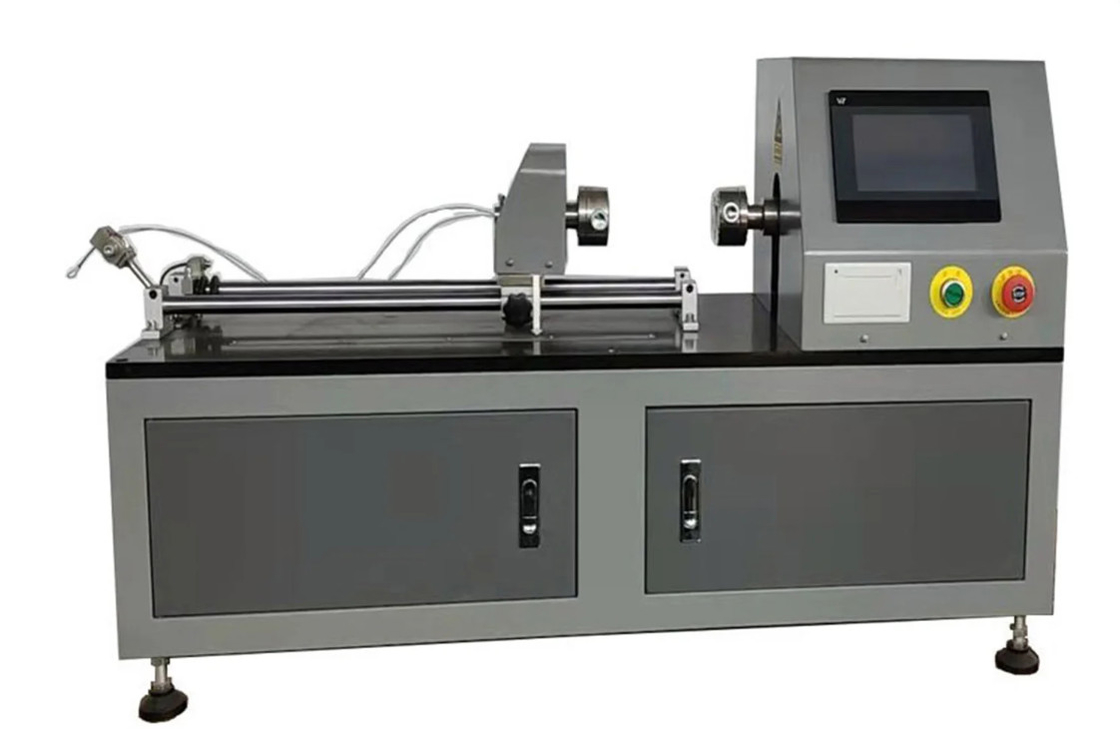

Name: Torsion Testing Machine For Steel Wire Bar Prestressed Wire Enamelled Wire Alloy Material Torsion Machine
Brand: SKYLINE
SKU: SL-N01
Rating: 4.6 (150 reviews)

Home Products Building Materials Flammability Tester

Torsion Testing Machine For Steel Wire Bar Prestressed Wire Enamelled Wire Alloy Material Torsion Machine

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-N01

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	neogitable
Packaging Details:	plywood case
Delivery Time:	15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Contact Now

Detailed Product Description

Torsion Diameter Range:	φ1-φ10mm	Maximum Turns:	0-9999 Turns
Chuck Spacing:	0-500mm (other Sizes Customized)	Coaxial Degree:	<φ0.4mm
Parallelism Of Moving Guide Rail:	<0.2mm	Rotation Speed:	15,20,30,60rpm
Hardness:	HRC55~65	Clamping Mode:	Manual
High Light:	Enamelled wire torsion testing machine , Alloy material torsion testing machine , Bar prestressed wire torsion testing machine

GENERL SPECIFICATIONS

Packaging Dimensions: (D*L*H) 680*900*800

Power supply source: AC 380V/220V+10% 50Hz (can be appointed)

Gross Weight: 65kg (Wood Package)

APPLICATIONS& TEST PURPOSE

This equipment is suitable for torsion test of copper rod,prestressed steel wire,enamelled wire cable

and other alloy materials.

STANDARD FEATURES

Torsion diameter range: φ1-φ10mm

Maximum number of display turns: 0-9999 turns

Number of turns display resolution: 1 turn (minimum number of turns)

Chuck spacing: 0-500mm (other sizes customized)

Coaxial degree of two collets: <00.4mm

Parallelism of moving guide rail: <0.2mm

Rotation speed: 15,20,30,60rpm

Hardness: HRC55~65

Operating noise of testing machine: <65db

Axial reinforcement method: weight reinforcement

Clamping mode: manual

Torsion Testing Machine For Steel Wire Bar Prestressed Wire Enamelled Wire Alloy Material Torsion Machine 0
